Z-15GW2A55-B5V

Omron Automation & Safety

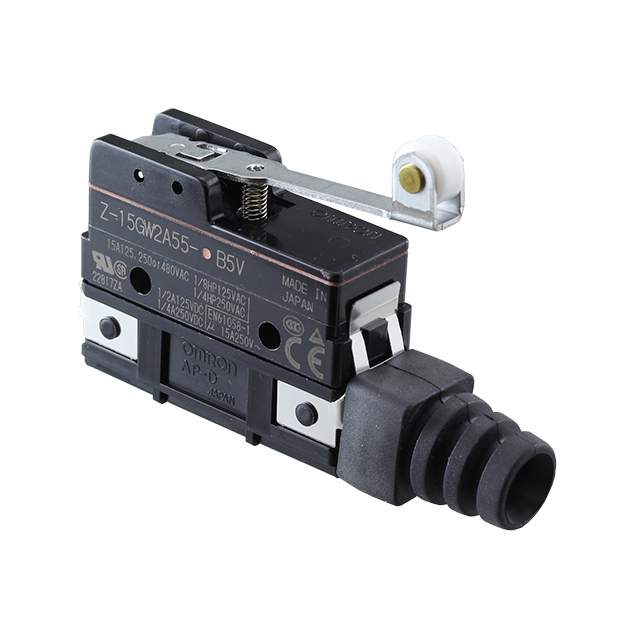

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z-15GW2A55-B5V
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION SPDT 15A 125V
Datasheets:	Z-15GW2A55-B5V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2955 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2955 pcs

Reference Price (In US Dollars)

1 pcs: $10.305

10 pcs: $7.73

25 pcs: $7.085

50 pcs: $6.656

100 pcs: $6.227

250 pcs: $6.012

500 pcs: $5.797

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$10.305

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z-15GW2A55-B5V

Part Number	Z-15GW2A55-B5V	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2955 pcs	Data sheet	Z-15GW2A55-B5V.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	Z	Release Force	21gf
Pretravel	-	Packaging	Bulk
Overtravel	0.158" (4.0mm)	Other Names	Z-15GW2A55-B5V-ND Z15GW2A55B5V Z8190
Operating Temperature	-15°C ~ 80°C	Operating Position	1.188" (30.2mm)
Operating Force	130gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP62
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.062" (1.6mm)	Current Rating	15A (AC), 6A (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
