Z-15HW78-B

Omron Automation & Safety

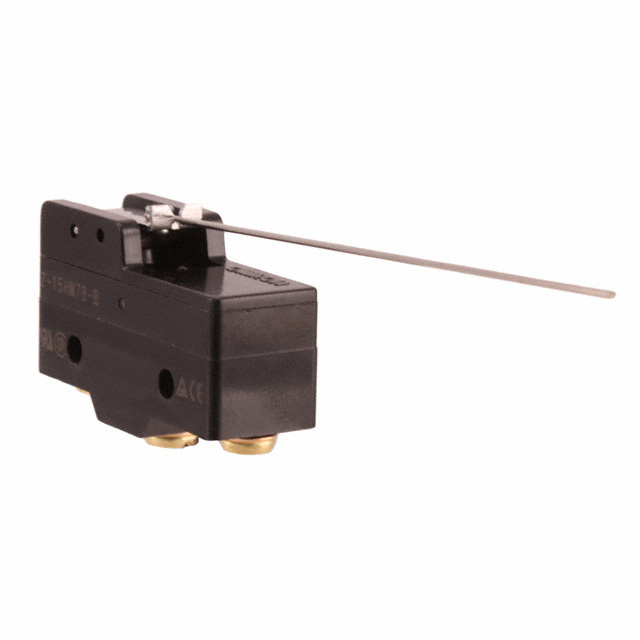

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z-15HW78-B
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION SPDT 10A 125V
Datasheets:	Z-15HW78-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5228 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5228 pcs

Reference Price (In US Dollars)

1 pcs: $7.284

10 pcs: $5.65

25 pcs: $5.353

50 pcs: $5.055

100 pcs: $4.609

250 pcs: $4.312

500 pcs: $4.163

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.284

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z-15HW78-B

Part Number	Z-15HW78-B	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5228 pcs	Data sheet	Z-15HW78-B.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	Z	Release Force	0.300gf
Pretravel	0.394" (10.0mm)	Packaging	Bulk
Overtravel	0.235" (6.0mm)	Other Names	SW1288 Z-15HW78-B-ND Z15HW78B
Operating Temperature	-25°C ~ 80°C	Operating Position	0.787" (20.0mm)
Operating Force	3.997gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP00
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.118" (3.0mm)	Current Rating	10A (AC/DC)
Circuit	SPDT	Actuator Type	Wire Lever
