G8NB-1 DC12

Omron

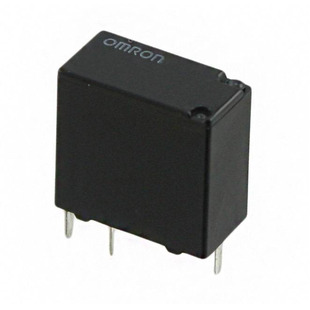

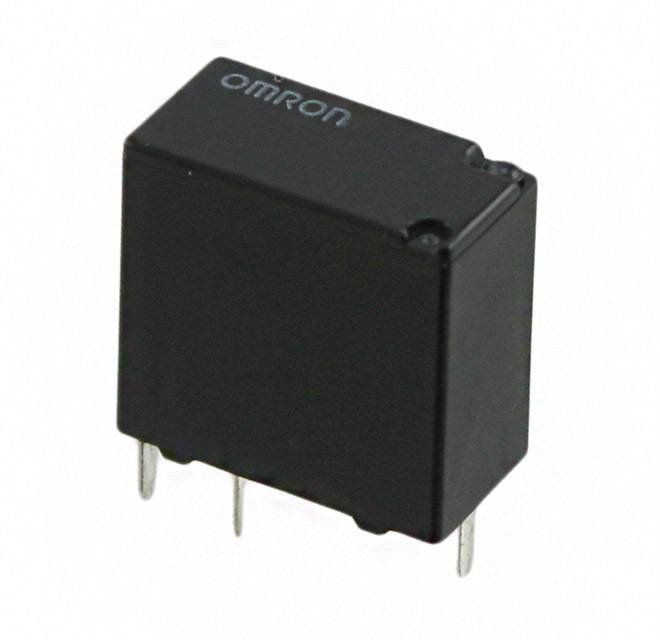

Image may be representation. See specifications for product details.

Product Overview

Part Number:	G8NB-1 DC12
Manufacturer/Brand:	Omron
Product description	RELAY AUTOMOTIVE SPDT 30A 12V
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21164 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 21164 pcs

Reference Price (In US Dollars)

2700 pcs: $1.715

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.715

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of G8NB-1 DC12

Part Number	G8NB-1 DC12	Manufacturer	Omron
Description	RELAY AUTOMOTIVE SPDT 30A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21164 pcs	Data sheet
Turn On Voltage (Max)	7.2 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	16VDC - Max
Series	G8N-1	Release Time	10ms
Packaging	Bulk	Other Names	G8NB-1 DC12-ND G8NB-1DC12 G8NB1DC12
Operating Temperature	-	Operate Time	10ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Contact Rating (Current)	30A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	SPDT (1 Form C)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	225 Ohms
Coil Power	640 mW	Coil Current	53.3mA
