ED120/7DS

On-Shore Technology, Inc.

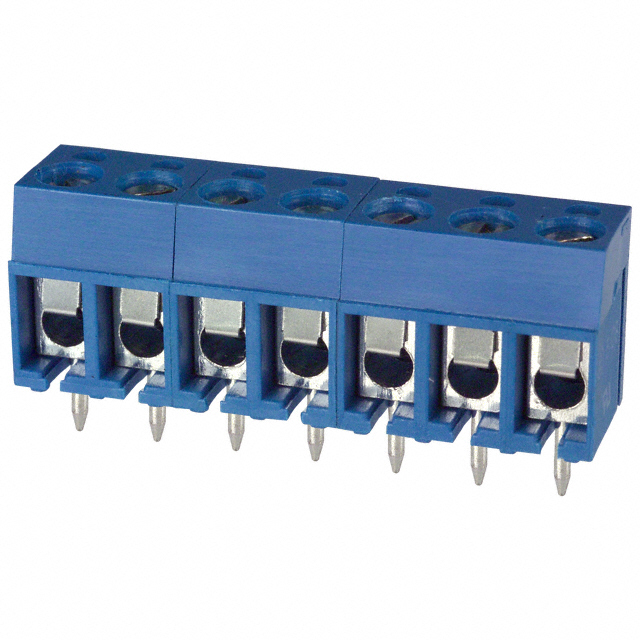

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED120/7DS
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 5.08MM VERT 7POS
Datasheets:	ED120/7DS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41591 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41591 pcs

Reference Price (In US Dollars)

1 pcs: $0.78

10 pcs: $0.59

25 pcs: $0.547

50 pcs: $0.492

100 pcs: $0.48

250 pcs: $0.42

500 pcs: $0.384

1000 pcs: $0.348

5000 pcs: $0.306

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.78

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED120/7DS

Part Number	ED120/7DS	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 5.08MM VERT 7POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41591 pcs	Data sheet	ED120/7DS.pdf
Wire Termination	Screw - Leaf Spring, Wire Guard	Wire Gauge	14-22 AWG
Voltage	300V	Torque - Screw	0.5 Nm (4.4 Lb-In)
Series	ED120/DS	Screw Thread	M3
Screw Material - Plating	-	Positions Per Level	7
Pitch	0.200" (5.08mm)	Packaging	Bulk
Other Names	ED1207DS ED2230	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Horizontal with Board
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA), Nylon
Features	-	Detailed Description	7 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Current	15A	Contact Material - Plating	Brass
Color	Blue	Clamp Material - Plating	Steel, Stainless
