OA109AP-11/22-1WB

Orion FansOrion Fans

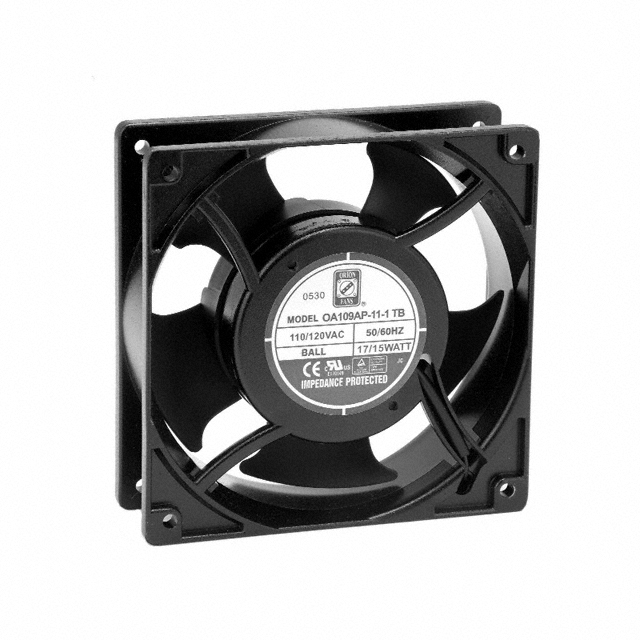

OA109AP-11/22-1WB Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: OA109AP-11/22-1WB
Manufacturer/Brand: Orion Fans
Product description FAN AXIAL 120X38MM 115/230VAC
Datasheets: 1.OA109AP-11/22-1WB.pdf2.OA109AP-11/22-1WB.pdf3.OA109AP-11/22-1WB.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4342 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4342 pcs
Reference Price (In US Dollars)
1 pcs
$7.362
10 pcs
$6.694
25 pcs
$6.47
100 pcs
$5.578
250 pcs
$5.466
500 pcs
$5.444
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$7.362

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of OA109AP-11/22-1WB

Part Number OA109AP-11/22-1WB Manufacturer Orion Fans
Description FAN AXIAL 120X38MM 115/230VAC Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4342 pcs Data sheet 1.OA109AP-11/22-1WB.pdf2.OA109AP-11/22-1WB.pdf3.OA109AP-11/22-1WB.pdf
Width 38.00mm Weight -
Voltage Range 80 ~ 260VAC Voltage - Rated 115/230VAC
Termination 4 Wire Leads Static Pressure 0.280 in H2O (69.7 Pa)
Size / Dimension Square - 119.5mm L x 119.5mm H Series OA109
RPM 3000 RPM Power (Watts) 15.00W
Other Names 1053-1000
OA109AP-1/2-1WB
OA109AP-11/22-1WBX
OA109AP11/221WB
OA109AP11221WB
Operating Temperature -4 ~ 176°F (-20 ~ 80°C)
Noise 42.0 dB Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Frame Aluminum Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 60000 Hrs @ 40°C Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection - Features Dual Voltage
Fan Type Tubeaxial Current Rating -
Bearing Type Ball Approvals cURus, TUV
Air Flow 110.0 CFM (3.08m³/min)
