ACT512

Panasonic

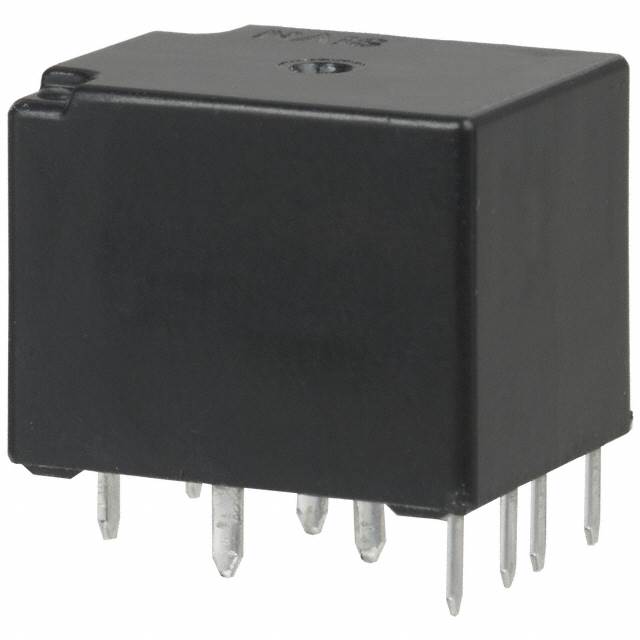

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACT512
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPDTX2 20A 12V
Datasheets:	ACT512.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20268 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20268 pcs

Reference Price (In US Dollars)

1 pcs: $1.763

10 pcs: $1.652

30 pcs: $1.468

60 pcs: $1.395

120 pcs: $1.321

270 pcs: $1.174

510 pcs: $1.101

1020 pcs: $1.028

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.763

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACT512

Part Number	ACT512	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPDTX2 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20268 pcs	Data sheet	ACT512.pdf
Turn On Voltage (Max)	7.2 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	ACT	Release Time	10ms
Packaging	Tube	Other Names	255-1852 ACT512-ND
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Contact Rating (Current)	20A	Contact Material	Silver Alloy, Cadmium Free
Contact Form	SPDT (1 Form C) x 2	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	180 Ohms
Coil Power	800 mW	Coil Current	66.7mA
