AGQ20T2H

Panasonic

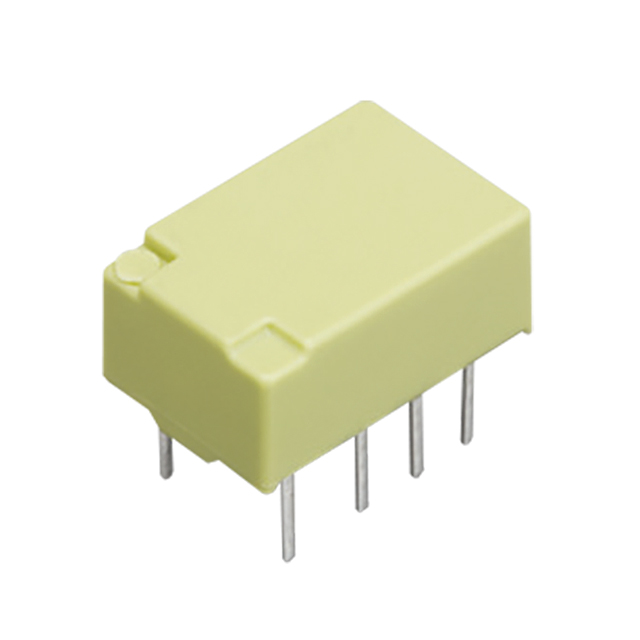

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AGQ20T2H
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPDT 2A 125V
Datasheets:	AGQ20T2H.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34794 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 34794 pcs

Reference Price (In US Dollars)

1 pcs: $1.096

10 pcs: $1.027

25 pcs: $0.913

50 pcs: $0.868

100 pcs: $0.822

250 pcs: $0.731

500 pcs: $0.685

1000 pcs: $0.639

5000 pcs: $0.616

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.096

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AGQ20T2H

Part Number	AGQ20T2H	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPDT 2A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34794 pcs	Data sheet	AGQ20T2H.pdf
Turn On Voltage (Max)	1.8 VDC	Turn Off Voltage (Min)	0.24 VDC
Termination Style	PC Pin	Switching Voltage	125VAC, 110VDC - Max
Series	AGQ TH	Release Time	4ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-5438	Operating Temperature	-40°C ~ 85°C
Operate Time	4ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	General Purpose Relay DPDT (2 Form C) Through Hole
Contact Rating (Current)	2A	Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Form	DPDT (2 Form C)	Coil Voltage	2.4VDC
Coil Type	Non Latching	Coil Resistance	41 Ohms
Coil Power	140 mW	Coil Current	58.5mA
