AH1684619-A

PanasonicPanasonic

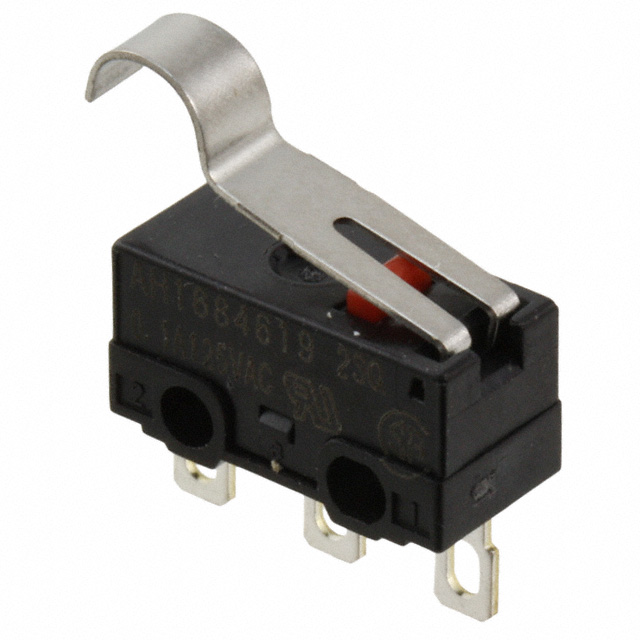

AH1684619-A Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AH1684619-A
Manufacturer/Brand: Panasonic
Product description SWITCH SNAP ACT SPDT 100MA 125V
Datasheets: AH1684619-A.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 58448 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 58448 pcs
Reference Price (In US Dollars)
1 pcs
$0.615
10 pcs
$0.58
25 pcs
$0.556
50 pcs
$0.533
100 pcs
$0.51
250 pcs
$0.406
500 pcs
$0.371
1000 pcs
$0.359
5000 pcs
$0.325
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.615

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AH1684619-A

Part Number AH1684619-A Manufacturer Panasonic
Description SWITCH SNAP ACT SPDT 100MA 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 58448 pcs Data sheet AH1684619-A.pdf
Voltage Rating - DC 30V Voltage Rating - AC 125V
Termination Style Solder Lug Switch Function On-Mom
Series AH1 Release Force 2.039gf
Pretravel 0.083" (2.1mm) Packaging Tube
Overtravel 0.020" (0.5mm) Other Names 255-4103-5
AH1684619-A-ND
AH1684619A
Operating Temperature -25°C ~ 85°C Operating Position 0.374" (9.5mm)
Operating Force 26gf Mounting Type Chassis Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 1,000,000 Cycles
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Features - Electrical Life 100,000 Cycles
Differential Travel 0.020" (0.5mm) Current Rating 100mA (AC/DC)
Circuit SPDT Actuator Type Lever, Simulated Roller
