AH1764619-A

Panasonic

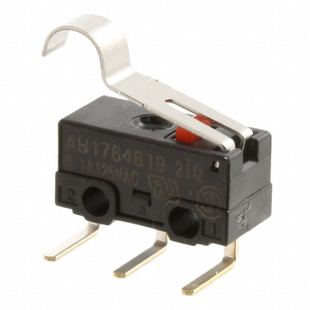

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AH1764619-A
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	AH1764619-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48061 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 48061 pcs

Reference Price (In US Dollars)

1 pcs: $0.731

10 pcs: $0.674

25 pcs: $0.632

50 pcs: $0.618

100 pcs: $0.492

250 pcs: $0.464

500 pcs: $0.436

1000 pcs: $0.407

5000 pcs: $0.379

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.731

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AH1764619-A

Part Number	AH1764619-A	Manufacturer	Panasonic
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48061 pcs	Data sheet	AH1764619-A.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Mom
Series	AH1	Release Force	4.079gf
Pretravel	0.083" (2.1mm)	Packaging	Tube
Overtravel	0.020" (0.5mm)	Other Names	255-3529-5 AH1764619-A-ND AH1764619A
Operating Temperature	-25°C ~ 85°C	Operating Position	0.374" (9.5mm)
Operating Force	55gf	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	100,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	100mA (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Simulated Roller
