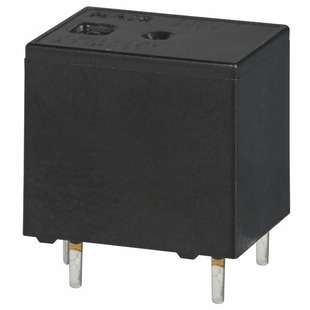

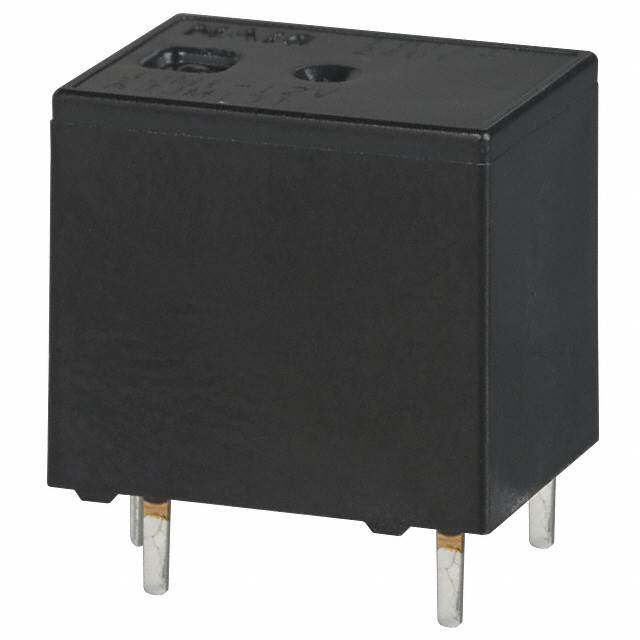

JJM1A-12V

Panasonic

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JJM1A-12V
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPST 20A 12V
Datasheets:	1.JJM1A-12V.pdf 2.JJM1A-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26858 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 26858 pcs

Reference Price (In US Dollars)

1 pcs: $1.215

10 pcs: $1.138

25 pcs: $1.012

50 pcs: $0.961

100 pcs: $0.91

250 pcs: $0.809

500 pcs: $0.759

1000 pcs: $0.708

5000 pcs: $0.683

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.215

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JJM1A-12V

Part Number	JJM1A-12V	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPST 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26858 pcs	Data sheet	1.JJM1A-12V.pdf 2.JJM1A-12V.pdf
Turn On Voltage (Max)	7.2 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	JJM	Release Time	10ms
Packaging	Bulk	Other Names	255-3101 JJM1A-12V-ND JJM1A12V
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Contact Rating (Current)	20A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPST-NO (1 Form A)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	225 Ohms	Coil Power	640 mW
Coil Current	53.3mA
