PNA1401LF

PanasonicPanasonic

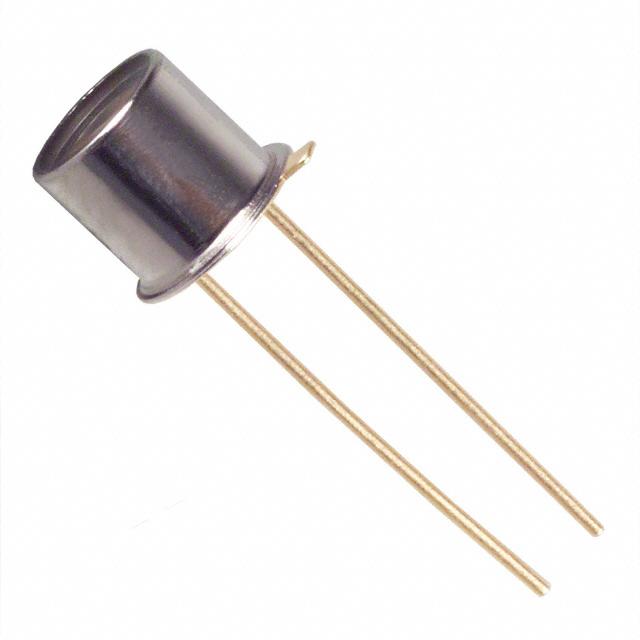

PNA1401LF Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PNA1401LF
Manufacturer/Brand: Panasonic
Product description NPN PHOTOTRANS 800NM TO-18 FLAT
Datasheets: PNA1401LF.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3370 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 3370 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PNA1401LF

Part Number PNA1401LF Manufacturer Panasonic
Description NPN PHOTOTRANS 800NM TO-18 FLAT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3370 pcs Data sheet PNA1401LF.pdf
Wavelength 800nm Voltage - Collector Emitter Breakdown (Max) 30V
Viewing Angle 80° Series *
Power - Max 150mW Packaging -
Package / Case TO-18-2 Metal Can Other Names PN101F
PN101F-ND
Orientation Top View Operating Temperature -
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description Phototransistor 800nm Top View TO-18-2 Metal Can
Current - Dark (Id) (Max) 300nA Current - Collector (Ic) (Max) 50mA
