SG-E1-12

Panasonic

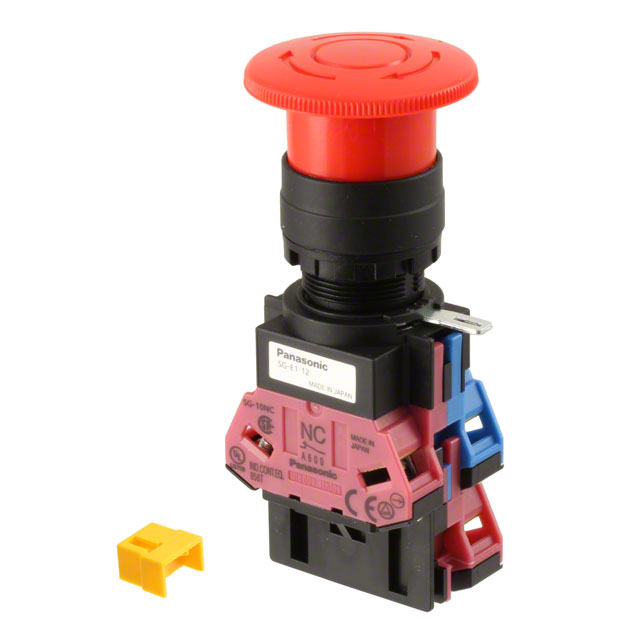

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SG-E1-12
Manufacturer/Brand:	Panasonic
Product description	SW PUSH DPST-NC/SPST-NO 10A 110V
Datasheets:	SG-E1-12.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1863 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1863 pcs

Reference Price (In US Dollars)

1 pcs: $20.599

10 pcs: $18.024

25 pcs: $16.479

50 pcs: $15.449

100 pcs: $14.677

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$20.599

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SG-E1-12

Part Number	SG-E1-12	Manufacturer	Panasonic
Description	SW PUSH DPST-NC/SPST-NO 10A 110V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1863 pcs	Data sheet	SG-E1-12.pdf
Voltage Rating - DC	24V	Voltage Rating - AC	110V
Type	Emergency Stop	Termination Style	Screw Terminal
Switch Function	On-Off, Off-On	Series	SG-E1
Panel Cutout Dimensions	Circular - 22.30mm Dia	Packaging	Bulk
Other Names	1110-3519	Operating Temperature	-25°C ~ 60°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	500,000 Cycles	Detailed Description	Pushbutton Switch 3PST-2NC/1NO Emergency Stop Panel Mount, Front
Current Rating	10A (AC), 8A (DC)	Color - Actuator/Cap	Red
Circuit	3PST-2NC/1NO	Actuator Type	Round, Button, Mushroom
