Phoenix Contact
| Part Number | 1827790 | Manufacturer | Phoenix Contact |
|---|---|---|---|

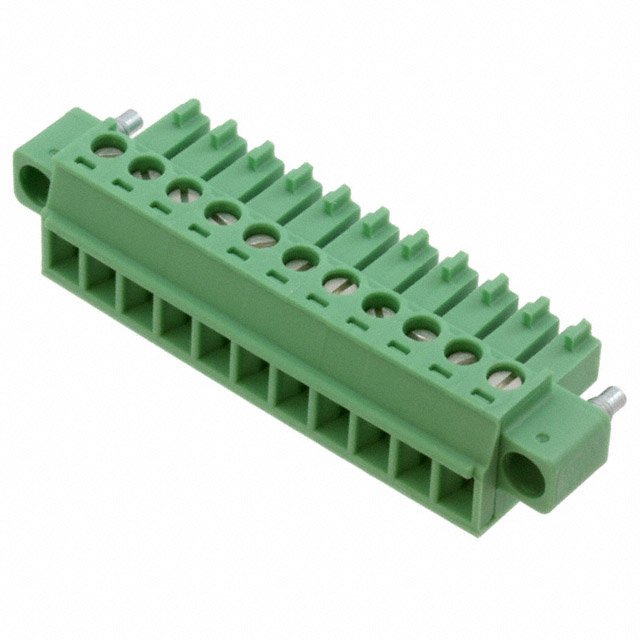

| Description | TERM BLOCK PLUG 11POS STR 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7889 pcs | Data sheet | 1827790.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON MC | Screw Size | M2 |
| Positions Per Level | 11 | Plug Wire Entry | 180° |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 1827790-ND 277-6386 MC 1,5/11-STF-3,81 MC1,5/11-STF-3,81 |
Operating Temperature | - |
| Number of Positions | 11 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.437" (11.10mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 11 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | 8A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
