Part Number | 1841899 | Manufacturer | Phoenix Contact |
---|---|---|---|

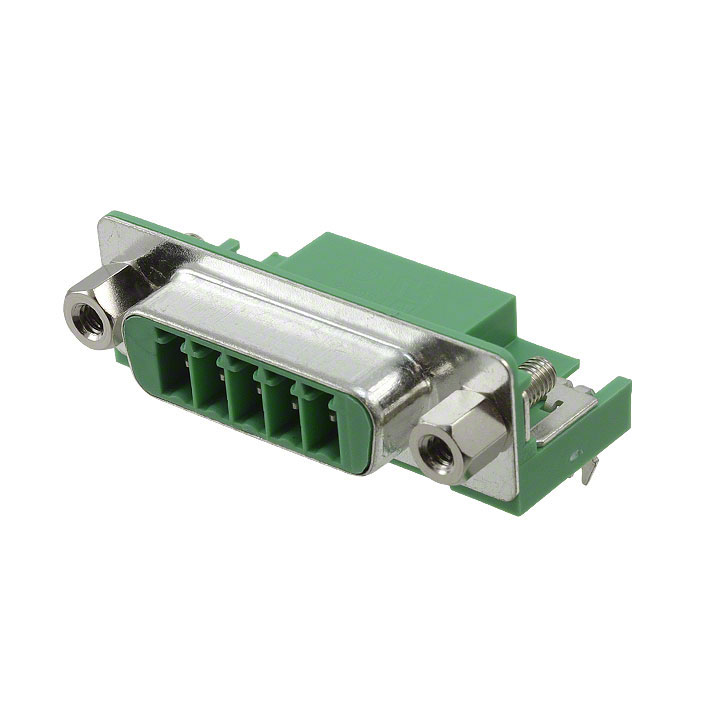

Description | TERM BLOCK HDR 5POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6586 pcs | Data sheet | 1841899.pdf |
Wire Strip Length | - | Wire Gauge or Range - mm² | - |
Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
Torque - Screw | - | Termination Style | Solder |
Series | POWER SUBCON | Screw Size | - |
Positions Per Level | 5 | Plug Wire Entry | - |
Pitch | 0.138" (3.50mm) | Packaging | Bulk |
Other Names | 1841899-ND 277-6178 PSC 1,5/ 5-M PSC1,5/5-M |
Operating Temperature | - |
Number of Positions | 5 | Number of Levels | 1 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Height | 0.539" (13.70mm) | Ingress Protection | - |
Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
Features | Board Lock, DB9 Shape, Mating Flange | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
Current - UL | 8A | Current - IEC | 8A |
Contact Tail Length | 0.161" (4.10mm) | Contact Mating Finish | Tin |
Contact Material | - | Color | Green |
