LCS705HG

Power IntegrationsPower Integrations

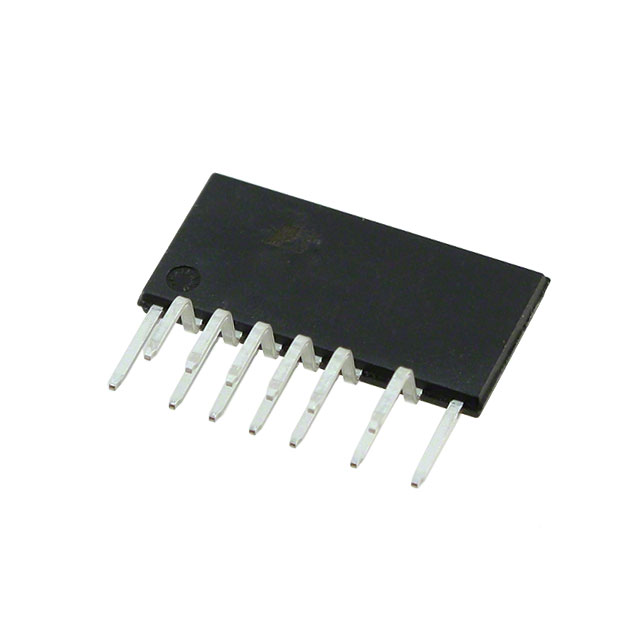

LCS705HG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: LCS705HG
Manufacturer/Brand: Power Integrations
Product description IC LLC CTRL MFET 350W ESIP16C
Datasheets: LCS705HG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 11970 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 11970 pcs
Reference Price (In US Dollars)
1 pcs
$3.059
10 pcs
$2.754
30 pcs
$2.509
120 pcs
$2.264
270 pcs
$2.081
510 pcs
$1.897
1020 pcs
$1.652
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$3.059

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of LCS705HG

Part Number LCS705HG Manufacturer Power Integrations
Description IC LLC CTRL MFET 350W ESIP16C Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 11970 pcs Data sheet LCS705HG.pdf
Voltage - Supply 11.4 V ~ 15 V Voltage - Load 11.4 V ~ 15 V
Technology Power MOSFET Supplier Device Package 16-ESIP
Series HiperLCS™ Rds On (Typ) 400 mOhm
Packaging Tube Package / Case 16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Output Configuration Half Bridge Other Names 596-1431-5
Operating Temperature -40°C ~ 150°C (TJ) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Load Type Inductive
Lead Free Status / RoHS Status Lead free / RoHS Compliant Interface On/Off
Features Auto Restart, Slew Rate Controlled Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Detailed Description Half Bridge Driver General Purpose Power MOSFET 16-ESIP Current - Peak Output 19.3A
Current - Output / Channel - Applications General Purpose
