CM225DX-24S1

Powerex, Inc.

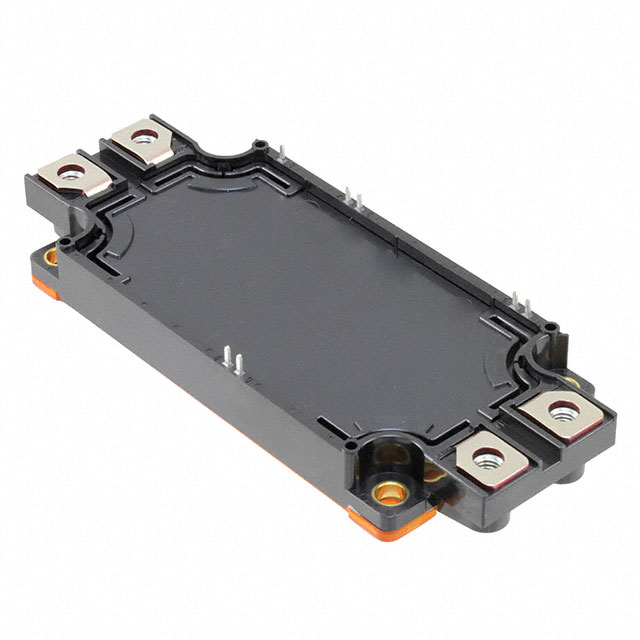

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CM225DX-24S1
Manufacturer/Brand:	Powerex, Inc.
Product description	IGBT MOD NX 225A 1200V DUAL
Datasheets:	CM225DX-24S1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	887 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 887 pcs

Reference Price (In US Dollars)

1 pcs: $33.826

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$33.826

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CM225DX-24S1

Part Number	CM225DX-24S1	Manufacturer	Powerex, Inc.
Description	IGBT MOD NX 225A 1200V DUAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	887 pcs	Data sheet	CM225DX-24S1.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.35V @ 15V, 225A
Supplier Device Package	Module	Series	-
Power - Max	1250W	Package / Case	Module
Other Names	835-1150	Operating Temperature	-40°C ~ 150°C (TJ)
NTC Thermistor	Yes	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	20nF @ 10V
Input	Standard	IGBT Type	-
Detailed Description	IGBT Module Half Bridge 1200V 225A 1250W Module	Current - Collector Cutoff (Max)	1mA
Current - Collector (Ic) (Max)	225A	Configuration	Half Bridge
