FIS105NL

Pulse Electronics Corporation

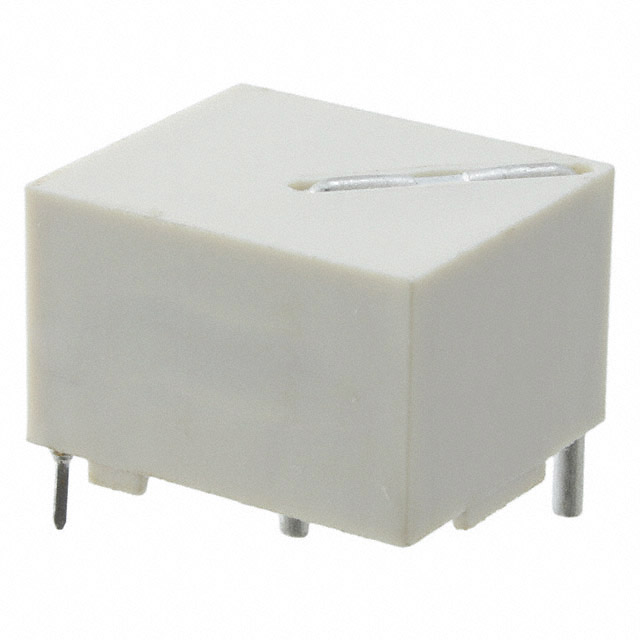

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FIS105NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 1:50 25A T/H
Datasheets:	FIS105NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34903 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34903 pcs

Reference Price (In US Dollars)

1 pcs: $0.959

10 pcs: $0.767

30 pcs: $0.623

60 pcs: $0.607

120 pcs: $0.591

270 pcs: $0.575

510 pcs: $0.571

1020 pcs: $0.505

5010 pcs: $0.463

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.959

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FIS105NL

Part Number	FIS105NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 1:50 25A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34903 pcs	Data sheet	FIS105NL.pdf
Weight	0.017 lb (7.71g)	Type	Invasive
Turns Ratio - Primary:Secondary	1:50	Termination Style	PC Pin
Size / Dimension	0.693" L x 0.591" W (17.60mm x 15.00mm)	Series	FIS 1X5
Ratings	-	Packaging	Bulk
Other Names	553-1832-5 FIS105NL-ND	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	4.7mH	Height - Seated (Max)	0.492" (12.50mm)
Frequency Range	500kHz Max	Energy Time (E.T.)	175V µS
Detailed Description	1:50 Current Sense Transformer 500kHz Max 500 mOhm Max 4.7mH Through Hole	DC Resistance (DCR)	500 mOhm Max
Current Ratio	-
