H1302NL

Pulse Electronics Corporation

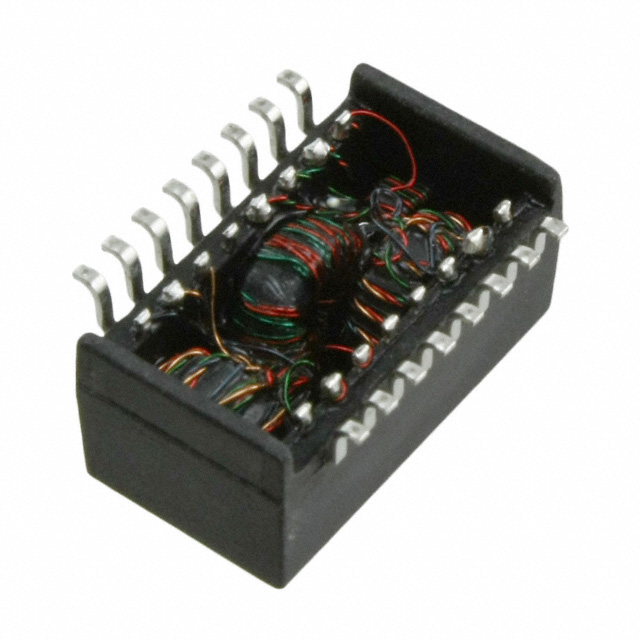

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H1302NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFRMR MAGNETIC 1PORT 1:1 10/100
Datasheets:	H1302NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17127 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17127 pcs

Reference Price (In US Dollars)

1 pcs: $1.833

10 pcs: $1.486

40 pcs: $1.201

80 pcs: $1.125

120 pcs: $1.075

280 pcs: $1.043

520 pcs: $1.012

1000 pcs: $0.98

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.833

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H1302NL

Part Number	H1302NL	Manufacturer	Pulse Electronics Corporation
Description	XFRMR MAGNETIC 1PORT 1:1 10/100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17127 pcs	Data sheet	H1302NL.pdf
Weight	0.03 oz (0.85g)	Turns Ratio - Primary:Secondary	1:1 Transmitter, 1:1 Receiver
Transformer Type	Isolation and Data Interface (Encapsulated)	Size / Dimension	0.500" L x 0.358" W (12.70mm x 9.09mm)
Series	-	Packaging	Tube
Other Names	553-1608-5 H1302NL-ND	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	-
Height - Seated (Max)	0.241" (6.12mm)	Energy Time (E.T.)	-
