JX0026D21BNL

Pulse Electronics Corporation

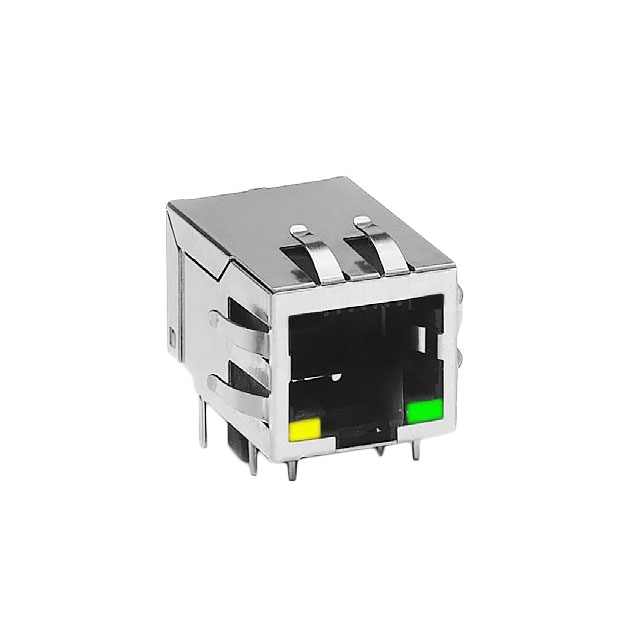

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JX0026D21BNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CONN MAGJACK
Datasheets:	JX0026D21BNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12736 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12736 pcs

Reference Price (In US Dollars)

1 pcs: $3.006

10 pcs: $2.874

25 pcs: $2.613

50 pcs: $2.482

100 pcs: $2.417

250 pcs: $2.156

500 pcs: $2.025

1000 pcs: $1.79

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.006

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JX0026D21BNL

Part Number	JX0026D21BNL	Manufacturer	Pulse Electronics Corporation
Description	CONN MAGJACK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12736 pcs	Data sheet	JX0026D21BNL.pdf
Termination	Solder	Tab Direction	Down
Shielding	Shielded, EMI Finger	Shield Material	Brass
Series	PULSEJACK™ JX0	Packaging	Bulk
Other Names	553-2727 553-2727-5 553-2727-ND JX0026D21BNL-ND	Orientation	90° Angle (Right)
Operating Temperature	-40°C ~ 85°C	Number of Rows	1
Number of Ports	1	Number of Cores per Jack	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	LED Color	Green - Yellow
Housing Material	Thermoplastic	Height Above Board	0.545" (13.84mm)
Features	Board Guide	Detailed Description	1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX
Contact Material	Phosphor Bronze	Contact Finish Thickness	15.0µin (0.38µm)
Contact Finish	Gold	Connector Type	RJ45
Applications	10/100 Base-TX
