JX20-0254NL

Pulse Electronics Corporation

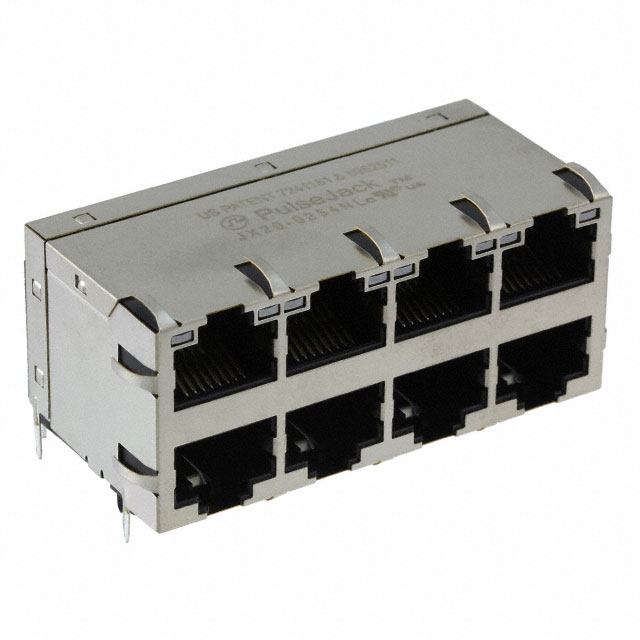

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JX20-0254NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CONN MAGJACK 8PORT 100 BASE-TX
Datasheets:	JX20-0254NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2593 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2593 pcs

Reference Price (In US Dollars)

1 pcs: $14.614

16 pcs: $13.191

32 pcs: $12.638

56 pcs: $11.848

104 pcs: $11.453

256 pcs: $10.822

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$14.614

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JX20-0254NL

Part Number	JX20-0254NL	Manufacturer	Pulse Electronics Corporation
Description	CONN MAGJACK 8PORT 100 BASE-TX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2593 pcs	Data sheet	JX20-0254NL.pdf
Termination	Solder	Tab Direction	Up and Down
Shielding	Shielded, EMI Finger	Shield Material	Copper Alloy
Series	PULSEJACK™ JX2	Packaging	Tray
Other Names	553-3227	Orientation	90° Angle (Right)
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Ports	8	Number of Cores per Jack	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	LED Color	Green, Orange - Green, Orange
Housing Material	Thermoplastic	Height Above Board	1.005" (25.53mm)
Features	Board Guide	Detailed Description	8 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX
Contact Material	Phosphor Bronze	Contact Finish Thickness	50.0µin (1.27µm)
Contact Finish	Gold	Connector Type	RJ45
Applications	10/100 Base-TX, AutoMDIX
