PE-52649NL

Pulse Electronics Corporation

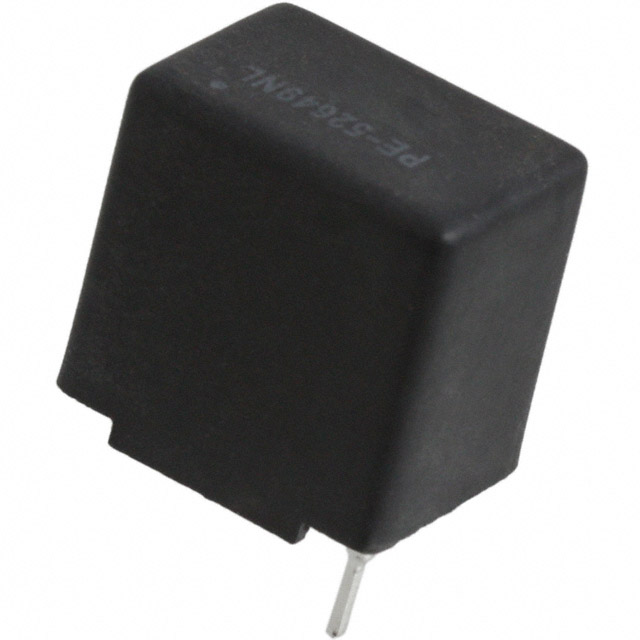

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-52649NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 680UH 850MA 1.5 OHM TH
Datasheets:	PE-52649NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30533 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30533 pcs

Reference Price (In US Dollars)

1 pcs: $1.201

40 pcs: $1.001

120 pcs: $0.721

520 pcs: $0.641

1000 pcs: $0.601

2520 pcs: $0.581

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.201

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-52649NL

Part Number	PE-52649NL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 680UH 850MA 1.5 OHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30533 pcs	Data sheet	PE-52649NL.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.710" L x 0.510" W (18.03mm x 12.95mm)
Shielding	Unshielded	Series	-
Ratings	-	Q @ Freq	-
Packaging	Tube	Package / Case	Radial
Other Names	553-1807-5 PE-52649NL-ND PE52649NL	Operating Temperature	-40°C ~ 130°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	20kHz	Inductance	680µH
Height - Seated (Max)	0.710" (18.03mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	680µH Unshielded Toroidal Inductor 850mA 1.5 Ohm Max Radial
DC Resistance (DCR)	1.5 Ohm Max	Current Rating	850mA
Current - Saturation	-
