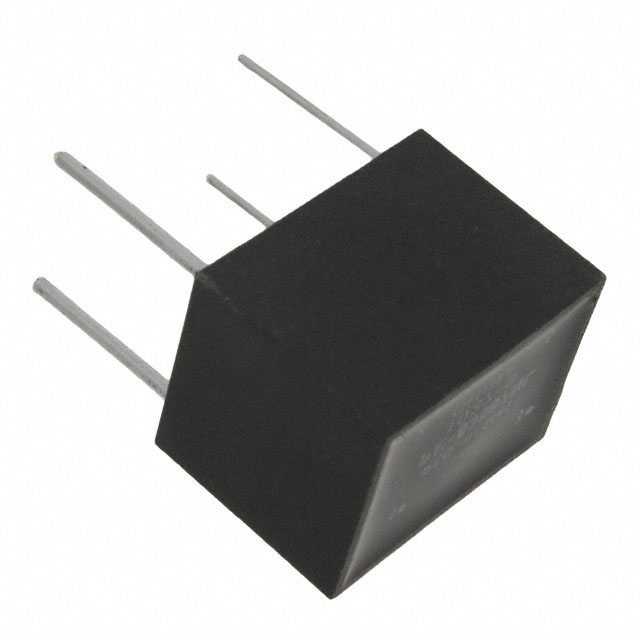

Part Number | PE-63587NL | Manufacturer | Pulse Electronics Corporation |
---|---|---|---|
Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 20037 pcs | Data sheet | PE-63587NL.pdf |
Weight | - | Type | Invasive |
Turns Ratio - Primary:Secondary | - | Termination Style | PC Pin |
Size / Dimension | 0.900" L x 0.700" W (22.86mm x 17.78mm) | Series | THT |
Ratings | - | Packaging | Tray |
Other Names | 553-1548 PE-63587NL-ND PE63587NL |
Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Inductance | 20mH | Height - Seated (Max) | 0.700" (17.78mm) |
Frequency Range | 20kHz ~ 200kHz | Energy Time (E.T.) | - |
Detailed Description | 20A Current Sense Transformer 20kHz ~ 200kHz 100 Ohm Primary, 1.4 Ohm Secondary 20mH Through Hole | DC Resistance (DCR) | 100 Ohm Primary, 1.4 Ohm Secondary |
Current Ratio | 100:1 | Current Rating | 20A |
