W3320

Pulse Electronics Corporation

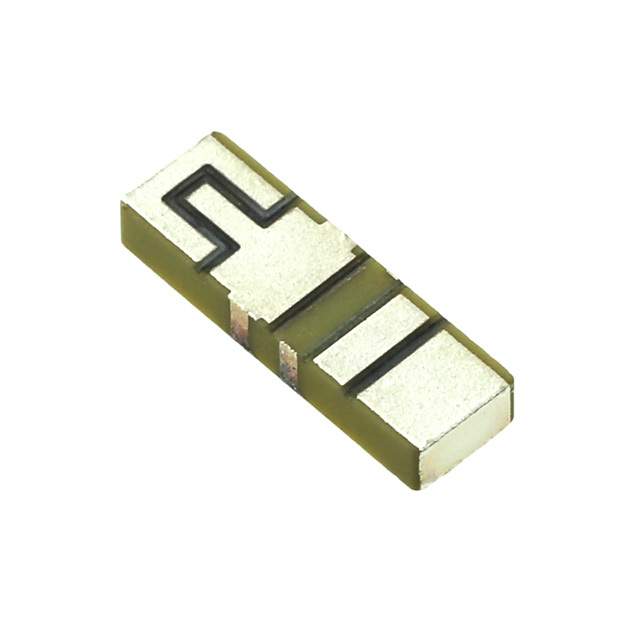

Image may be representation. See specifications for product details.

Product Overview

Part Number:	W3320
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	RF ANT 868MHZ/915MHZ CHIP SLD
Datasheets:	1.W3320.pdf 2.W3320.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55569 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 55569 pcs

Reference Price (In US Dollars)

1 pcs: $0.583

10 pcs: $0.527

25 pcs: $0.47

100 pcs: $0.423

250 pcs: $0.376

500 pcs: $0.329

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.583

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of W3320

Part Number	W3320	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 868MHZ/915MHZ CHIP SLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55569 pcs	Data sheet	1.W3320.pdf 2.W3320.pdf
VSWR	-	Termination	Solder
Series	*	Return Loss	-
Power - Max	2W	Packaging	Cut Tape (CT)
Other Names	553-3749-1	Number of Bands	3
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.079" (2.00mm)	Gain	3dBi
Frequency Range	-	Frequency Group	UHF (300 MHz ~ 1 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band)	868MHz, 915MHz, 2.4GHz	Features	-
Detailed Description	868MHz, 915MHz, 2.4GHz ISM Chip RF Antenna 3dBi Solder Surface Mount	Applications	ISM
Antenna Type	Chip
