Q817

QT Brightek

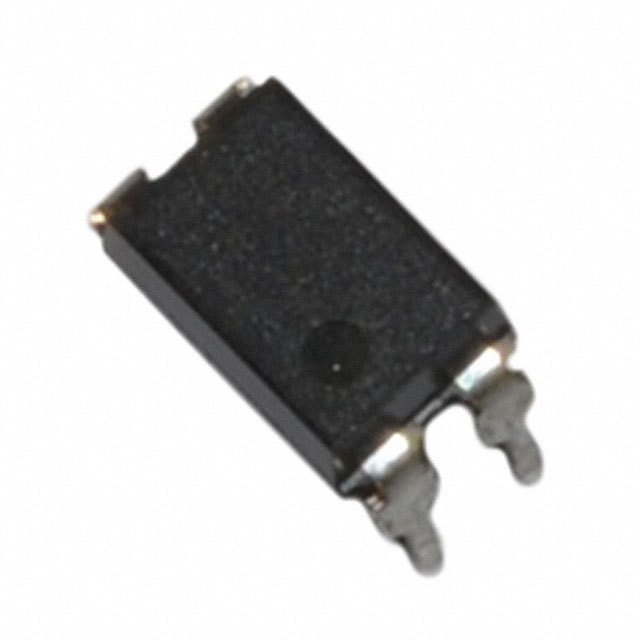

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Q817
Manufacturer/Brand:	QT Brightek
Product description	OPTOCPLR DC-INPUT 1.2V 4DIP
Datasheets:	1.Q817.pdf 2.Q817.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	248777 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 248777 pcs

Reference Price (In US Dollars)

100 pcs: $0.135

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.135

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Q817

Part Number	Q817	Manufacturer	QT Brightek
Description	OPTOCPLR DC-INPUT 1.2V 4DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	248777 pcs	Data sheet	1.Q817.pdf 2.Q817.pdf
Voltage - Output (Max)	80V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-DIP
Series	-	Rise / Fall Time (Typ)	6µs, 8µs
Packaging	Tube	Package / Case	4-DIP (0.300", 7.62mm)
Output Type	Transistor	Other Names	1516-1019
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP	Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
