BTW69-800RG

STMicroelectronics

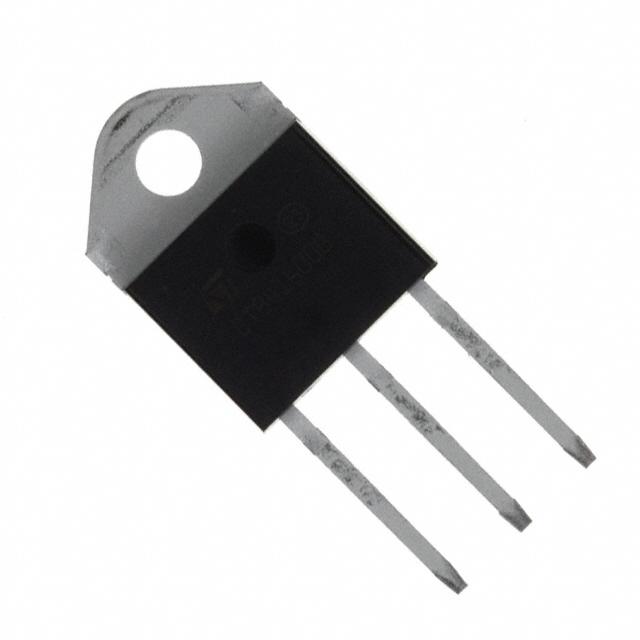

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BTW69-800RG
Manufacturer/Brand:	STMicroelectronics
Product description	IC SCR 50A 800V INSUL TOP-3
Datasheets:	BTW69-800RG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13497 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13497 pcs

Reference Price (In US Dollars)

1 pcs: $2.564

30 pcs: $2.21

120 pcs: $1.919

510 pcs: $1.671

1020 pcs: $1.455

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.564

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BTW69-800RG

Part Number	BTW69-800RG	Manufacturer	STMicroelectronics
Description	IC SCR 50A 800V INSUL TOP-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13497 pcs	Data sheet	BTW69-800RG.pdf
Voltage - On State (Vtm) (Max)	1.9V	Voltage - Off State	800V
Voltage - Gate Trigger (Vgt) (Max)	1.3V	Supplier Device Package	TOP3
Series	-	SCR Type	Standard Recovery
Packaging	Tube	Package / Case	TOP-3
Other Names	497-7194-5 BTW69-800RG-ND BTW69800RG	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	SCR 800V 50A Standard Recovery Through Hole TOP3
Current - On State (It (RMS)) (Max)	50A	Current - On State (It (AV)) (Max)	32A
Current - Off State (Max)	10µA	Current - Non Rep. Surge 50, 60Hz (Itsm)	580A, 610A
Current - Hold (Ih) (Max)	150mA	Current - Gate Trigger (Igt) (Max)	80mA
Base Part Number	BTW69
