SD1275

STMicroelectronicsSTMicroelectronics

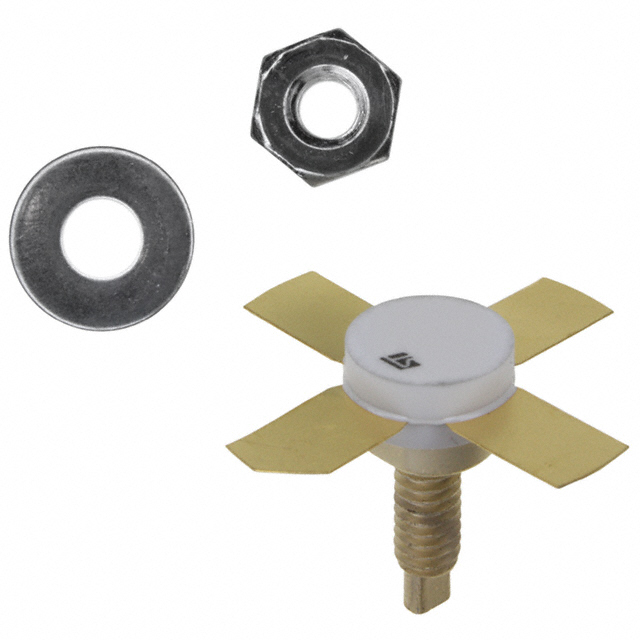

SD1275 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SD1275
Manufacturer/Brand: STMicroelectronics
Product description TRANS NPN RF MICROWAVE VHF M135
Datasheets: SD1275.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1453 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1453 pcs
Reference Price (In US Dollars)
1 pcs
$20.343
10 pcs
$19.108
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:Info@infinity-electronic.com
  • Target Price:(USD)
  • Qty:
Total:$20.343

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SD1275

Part Number SD1275 Manufacturer STMicroelectronics
Description TRANS NPN RF MICROWAVE VHF M135 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1453 pcs Data sheet SD1275.pdf
Voltage - Collector Emitter Breakdown (Max) 16V Transistor Type NPN
Supplier Device Package M135 Series -
Power - Max 70W Packaging Bulk
Package / Case M135 Other Names 497-5455
SD1275-ND
Operating Temperature 200°C (TJ) Noise Figure (dB Typ @ f) -
Mounting Type Chassis, Stud Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Gain 9dB
Frequency - Transition - Detailed Description RF Transistor NPN 16V 8A 70W Chassis, Stud Mount M135
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 250mA, 5V Current - Collector (Ic) (Max) 8A
