STB18N60DM2

STMicroelectronicsSTMicroelectronics

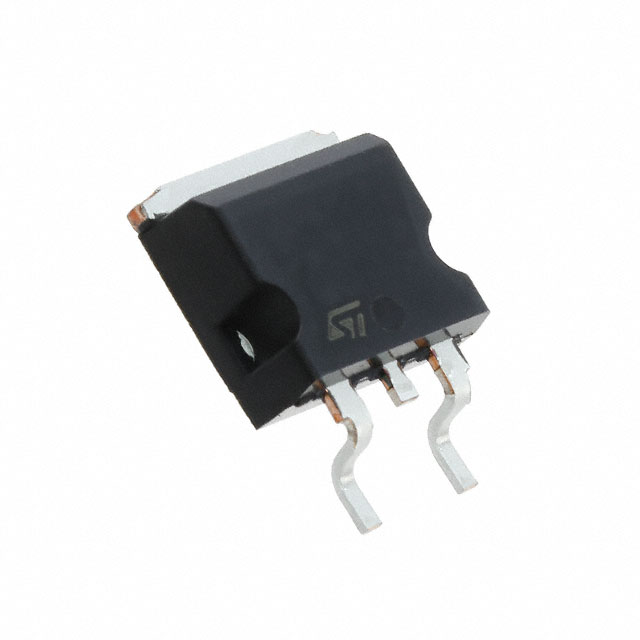

STB18N60DM2 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: STB18N60DM2
Manufacturer/Brand: STMicroelectronics
Product description MOSFET N-CH 600V 12A
Datasheets: STB18N60DM2.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 33412 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 33412 pcs
Reference Price (In US Dollars)
1 pcs
$1.075
10 pcs
$0.97
100 pcs
$0.78
500 pcs
$0.606
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.075

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of STB18N60DM2

Part Number STB18N60DM2 Manufacturer STMicroelectronics
Description MOSFET N-CH 600V 12A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 33412 pcs Data sheet STB18N60DM2.pdf
Vgs(th) (Max) @ Id 5V @ 250µA Vgs (Max) ±25V
Technology MOSFET (Metal Oxide) Supplier Device Package D2PAK
Series MDmesh™ DM2 Rds On (Max) @ Id, Vgs 295 mOhm @ 6A, 10V
Power Dissipation (Max) 90W (Tc) Packaging Cut Tape (CT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Other Names 497-16339-1
Operating Temperature 150°C (TJ) Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds 800pF @ 100V Gate Charge (Qg) (Max) @ Vgs 20nC @ 10V
FET Type N-Channel FET Feature -
Drive Voltage (Max Rds On, Min Rds On) 10V Drain to Source Voltage (Vdss) 600V
Detailed Description N-Channel 600V 12A (Tc) 90W (Tc) Surface Mount D2PAK Current - Continuous Drain (Id) @ 25°C 12A (Tc)
