STGP15M65DF2

STMicroelectronics

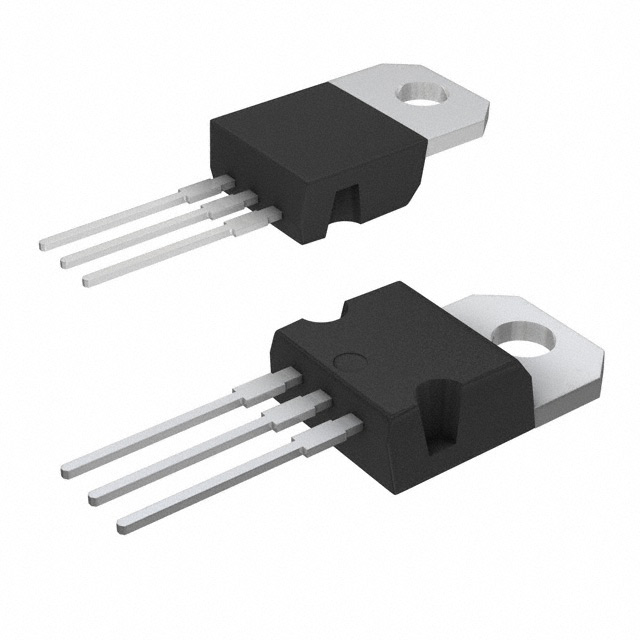

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STGP15M65DF2
Manufacturer/Brand:	STMicroelectronics
Product description	TRENCH GATE FIELD-STOP IGBT M SE
Datasheets:	STGP15M65DF2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37285 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37285 pcs

Reference Price (In US Dollars)

1 pcs: $0.864

50 pcs: $0.696

100 pcs: $0.626

500 pcs: $0.487

1000 pcs: $0.404

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.864

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STGP15M65DF2

Part Number	STGP15M65DF2	Manufacturer	STMicroelectronics
Description	TRENCH GATE FIELD-STOP IGBT M SE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37285 pcs	Data sheet	STGP15M65DF2.pdf
Voltage - Collector Emitter Breakdown (Max)	650V	Vce(on) (Max) @ Vge, Ic	2V @ 15V, 15A
Test Condition	400V, 15A, 12 Ohm, 15V	Td (on/off) @ 25°C	24ns/93ns
Switching Energy	90µJ (on), 450µJ (off)	Supplier Device Package	TO-220
Series	-	Reverse Recovery Time (trr)	142ns
Power - Max	136W	Packaging	Tube
Package / Case	TO-220-3	Other Names	497-16482-5
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Trench Field Stop
Gate Charge	45nC	Detailed Description	IGBT Trench Field Stop 650V 30A 136W Through Hole TO-220
Current - Collector Pulsed (Icm)	60A	Current - Collector (Ic) (Max)	30A
