Samtec, Inc.

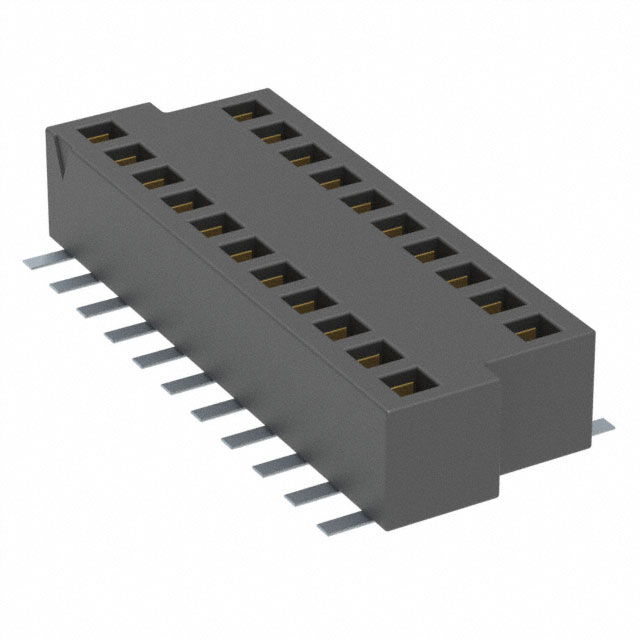

| Part Number | BKS-121-01-L-V | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 1MM SURFACE MOUNT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10160 pcs | Data sheet | 1.BKS-121-01-L-V.pdf2.BKS-121-01-L-V.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | BKS |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Other Names | BKS-121-01-L-V-ND SAM10915 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 21 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 4.14mm, 4.5mm, 5mm, 6mm, 7mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.084" (2.14mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 21 Position Socket Connector Surface Mount | Current Rating | 2.8A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Socket | Applications | - |
