BNC7T-J-P-GN-RA-BH1

Samtec, Inc.

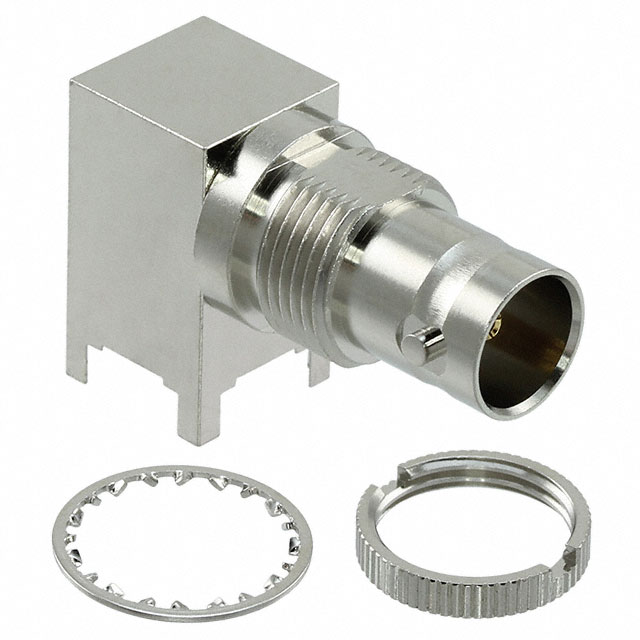

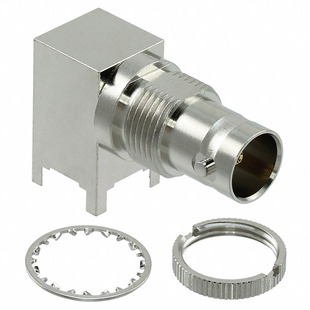

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BNC7T-J-P-GN-RA-BH1
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN BNC JACK R/A 75 OHM PCB
Datasheets:	BNC7T-J-P-GN-RA-BH1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7716 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7716 pcs

Reference Price (In US Dollars)

1 pcs: $4.204

10 pcs: $3.821

25 pcs: $3.726

50 pcs: $3.439

100 pcs: $3.248

250 pcs: $2.961

500 pcs: $2.77

1000 pcs: $2.541

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.204

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BNC7T-J-P-GN-RA-BH1

Part Number	BNC7T-J-P-GN-RA-BH1	Manufacturer	Samtec, Inc.
Description	CONN BNC JACK R/A 75 OHM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7716 pcs	Data sheet	BNC7T-J-P-GN-RA-BH1.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	TRUE75™ BNC7T	Packaging	-
Other Names	BNC7T-J-P-GN-RA-BH1-ND SAM12453	Operating Temperature	-65°C ~ 125°C
Number of Ports	1	Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Ingress Protection	-
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut	Impedance	75 Ohm
Housing Color	Silver	Frequency - Max	12GHz
Features	-	Fastening Type	Bayonet Lock
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder
Contact Termination	Solder	Connector Type	Jack, Female Socket
Connector Style	BNC	Center Contact Plating	Gold
Center Contact Material	Copper Alloy	Cable Group	-
Body Material	Brass	Body Finish	Nickel
