ESW-105-23-T-D

Samtec, Inc.Samtec, Inc.

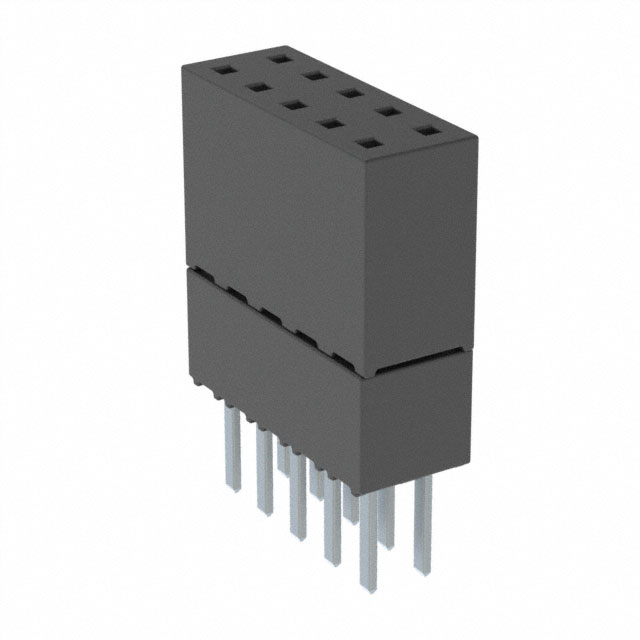

ESW-105-23-T-D Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ESW-105-23-T-D
Manufacturer/Brand: Samtec, Inc.
Product description ELEVATED SOCKET STRIPS
Datasheets: 1.ESW-105-23-T-D.pdf2.ESW-105-23-T-D.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 63677 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 63677 pcs
Reference Price (In US Dollars)
1 pcs
$0.513
10 pcs
$0.423
100 pcs
$0.317
500 pcs
$0.264
1000 pcs
$0.234
5000 pcs
$0.22
10000 pcs
$0.216
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.513

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ESW-105-23-T-D

Part Number ESW-105-23-T-D Manufacturer Samtec, Inc.
Description ELEVATED SOCKET STRIPS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 63677 pcs Data sheet 1.ESW-105-23-T-D.pdf2.ESW-105-23-T-D.pdf
Voltage Rating 550VAC Termination Solder
Style Board to Board Series ESW
Row Spacing - Mating 0.100" (2.54mm) Pitch - Mating 0.100" (2.54mm)
Packaging Tube Other Names ESW-105-23-T-D-ND
SAM12534
Operating Temperature -55°C ~ 105°C Number of Rows 2
Number of Positions Loaded All Number of Positions 10
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Liquid Crystal Polymer (LCP)
Insulation Height 0.535" (13.60mm) Insulation Color Black
Ingress Protection - Features -
Fastening Type Push-Pull Detailed Description 10 Position Elevated Socket Connector Through Hole
Current Rating 5.2A per Contact Contact Type Forked
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post 0.190" (4.83mm) Contact Finish Thickness - Post -
Contact Finish Thickness - Mating - Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Elevated Socket
Applications -
