EW-08-09-G-D-250

Samtec, Inc.

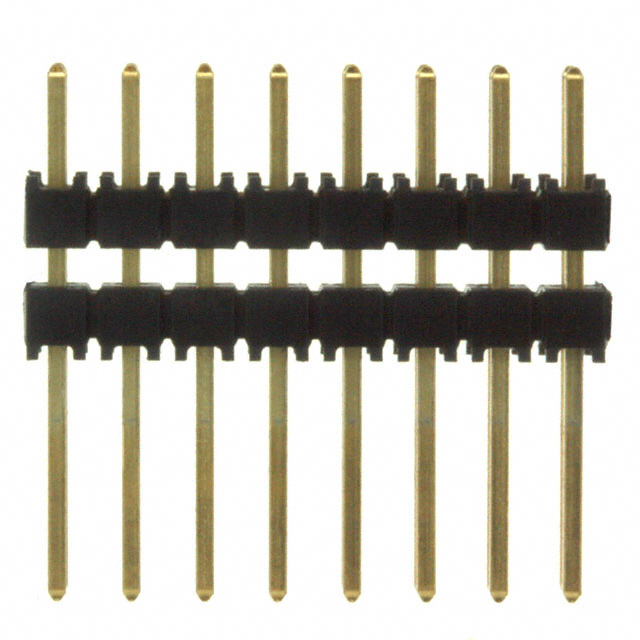

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EW-08-09-G-D-250
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN STACKER 16POS 0.100" T/H
Datasheets:	1.EW-08-09-G-D-250.pdf 2.EW-08-09-G-D-250.pdf 3.EW-08-09-G-D-250.pdf 4.EW-08-09-G-D-250.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	45771 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 45771 pcs

Reference Price (In US Dollars)

1 pcs: $0.745

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.745

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EW-08-09-G-D-250

Part Number	EW-08-09-G-D-250	Manufacturer	Samtec, Inc.
Description	CONN STACKER 16POS 0.100" T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45771 pcs	Data sheet	1.EW-08-09-G-D-250.pdf 2.EW-08-09-G-D-250.pdf 3.EW-08-09-G-D-250.pdf 4.EW-08-09-G-D-250.pdf
Termination	Solder	Series	Flex Stack, EW
Row Spacing	0.100" (2.54mm)	Pitch	0.100" (2.54mm)
Packaging	Tube	Other Names	Q3692544
Number of Rows	2	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Tail	0.330" (8.382mm)	Length - Stack Height	0.250" (6.350mm)
Length - Post (Mating)	0.150" (3.810mm)	Length - Overall Pin	0.730" (18.542mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	16 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
Contact Finish Thickness - Post (Mating)	10.0µin (0.25µm)	Contact Finish - Post (Mating)	Gold
Color	Black
