Samtec, Inc.

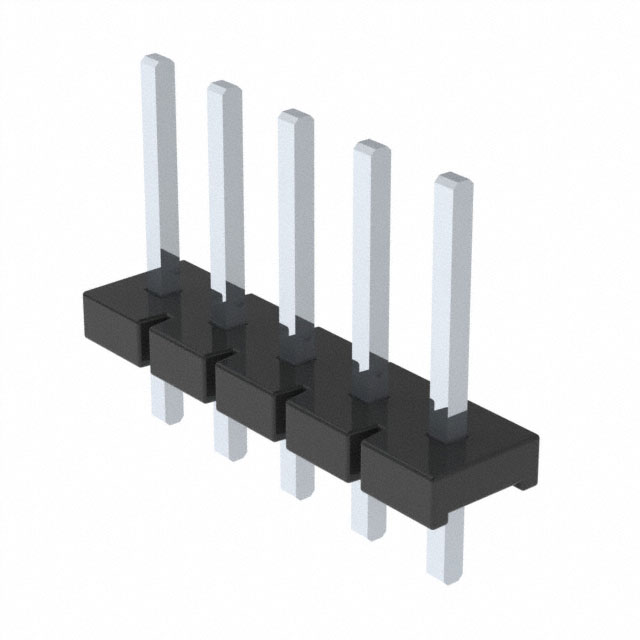

| Part Number | HPM-05-01-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .200 HIGH POWER BLOCK ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68291 pcs | Data sheet | 1.HPM-05-01-T-S.pdf2.HPM-05-01-T-S.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | HPM | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Tube |
| Overall Contact Length | 0.750" (19.05mm) | Other Names | HPM-05-01-T-S-ND SAM12628 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 5 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.180" (4.57mm) | Contact Length - Mating | 0.470" (11.94mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
