MOLC-125-01-S-Q-LC

Samtec, Inc.

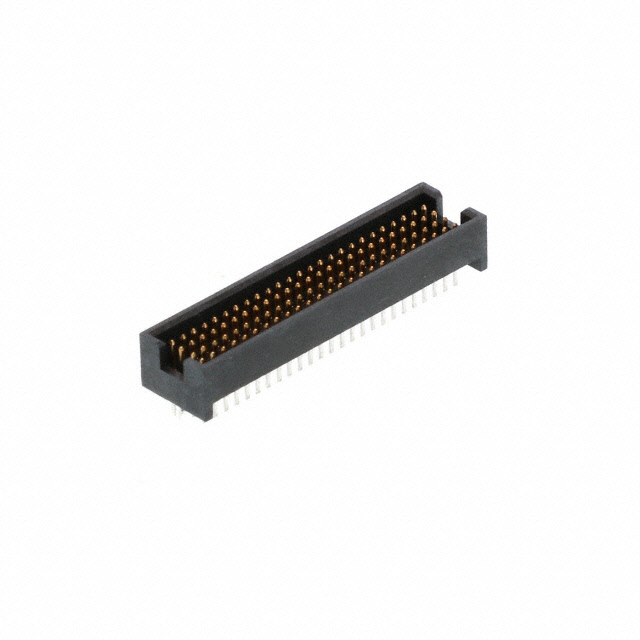

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MOLC-125-01-S-Q-LC
Manufacturer/Brand:	Samtec, Inc.
Product description	.050 X .050 4 ROW TERMINAL STRIP
Datasheets:	1.MOLC-125-01-S-Q-LC.pdf 2.MOLC-125-01-S-Q-LC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4086 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4086 pcs

Reference Price (In US Dollars)

1 pcs: $7.284

10 pcs: $6.575

100 pcs: $5.709

500 pcs: $5.236

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.284

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MOLC-125-01-S-Q-LC

Part Number	MOLC-125-01-S-Q-LC	Manufacturer	Samtec, Inc.
Description	.050 X .050 4 ROW TERMINAL STRIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4086 pcs	Data sheet	1.MOLC-125-01-S-Q-LC.pdf 2.MOLC-125-01-S-Q-LC.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	FOURRAY™ MOLC	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	MOLC-125-01-S-Q-LC-ND SAM11525
Operating Temperature	-55°C ~ 125°C	Number of Rows	4
Number of Positions Loaded	All	Number of Positions	100
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	5.97mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.220" (5.60mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 100 position 0.050" (1.27mm)
Current Rating	2.6A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.075" (1.91mm)	Contact Length - Mating	0.133" (3.38mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
