Samtec, Inc.

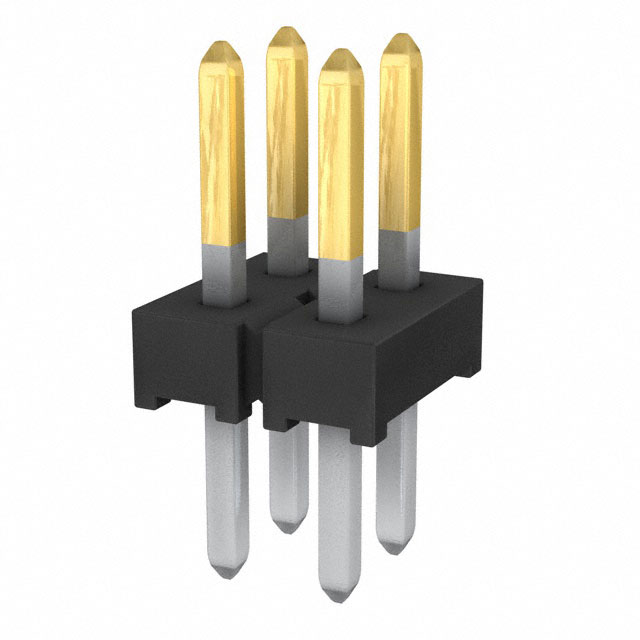

| Part Number | MTMM-102-04-SM-D-150 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 4POS 2MM DL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89694 pcs | Data sheet | 1.MTMM-102-04-SM-D-150.pdf2.MTMM-102-04-SM-D-150.pdf3.MTMM-102-04-SM-D-150.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | MTMM | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | 0.323" (8.20mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.114" (2.90mm) |
| Contact Length - Mating | 0.150" (3.81mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
