SMA-P-C-H-ST-CA1

Samtec, Inc.Samtec, Inc.

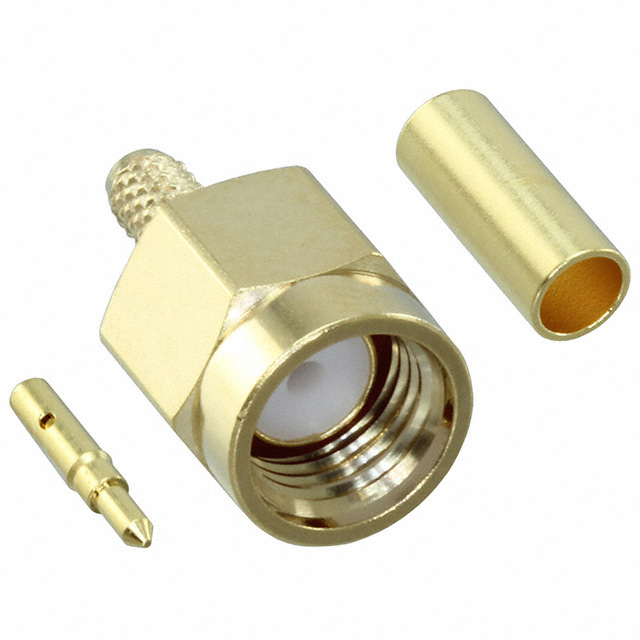

SMA-P-C-H-ST-CA1 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SMA-P-C-H-ST-CA1
Manufacturer/Brand: Samtec, Inc.
Product description CONN SMA PLUG RG174/316
Datasheets: SMA-P-C-H-ST-CA1.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 23287 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 23287 pcs
Reference Price (In US Dollars)
1 pcs
$1.616
10 pcs
$1.551
25 pcs
$1.422
50 pcs
$1.357
100 pcs
$1.292
250 pcs
$1.131
500 pcs
$1.099
1000 pcs
$0.937
2500 pcs
$0.872
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.616

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SMA-P-C-H-ST-CA1

Part Number SMA-P-C-H-ST-CA1 Manufacturer Samtec, Inc.
Description CONN SMA PLUG RG174/316 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 23287 pcs Data sheet SMA-P-C-H-ST-CA1.pdf
Voltage Rating 335V Shield Termination Crimp
Series - Packaging -
Other Names Q10090838
Q6790406
Q7713308
SAM10719
SMA-P-C-H-ST-CA1-ND		 Operating Temperature -65°C ~ 125°C
Number of Ports 1 Mounting Type Free Hanging (In-Line)
Mounting Feature - Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles - Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss - Ingress Protection -
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule Impedance 50 Ohm
Housing Color Gold Frequency - Max 20GHz
Features - Fastening Type Threaded
Dielectric Material Polytetrafluoroethylene (PTFE) Detailed Description SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
Contact Termination Solder Connector Type Plug, Male Pin
Connector Style SMA Center Contact Plating Gold
Center Contact Material Brass Cable Group RG-174, 316
Body Material Brass Body Finish Gold
