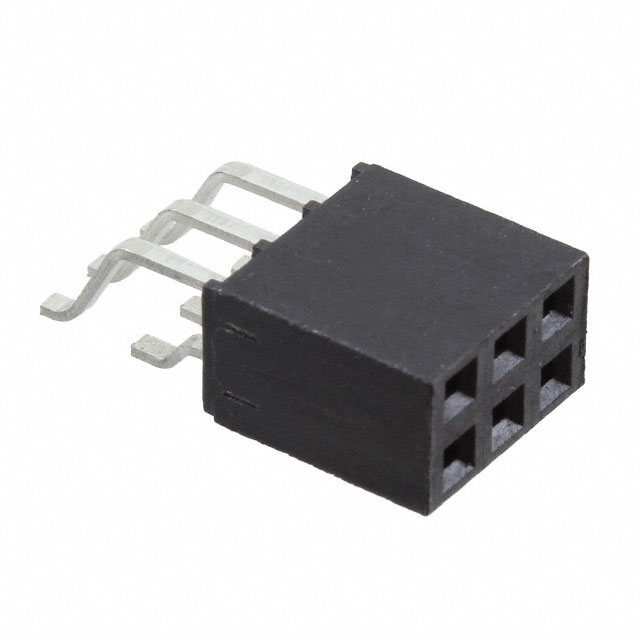

Part Number | SMH-103-02-T-D | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | .100 C.L. HORIZONTAL SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 59535 pcs | Data sheet | 1.SMH-103-02-T-D.pdf2.SMH-103-02-T-D.pdf3.SMH-103-02-T-D.pdf4.SMH-103-02-T-D.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board | Series | SMH |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Other Names | SAM11809 SMH-103-02-T-D-ND |
Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 6 |
Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.195" (4.95mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 6 Position Receptacle Connector Surface Mount, Right Angle |
Current Rating | - | Contact Type | Forked |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
Contact Finish - Mating | Tin | Connector Type | Receptacle |
Applications | - |
