Samtec, Inc.

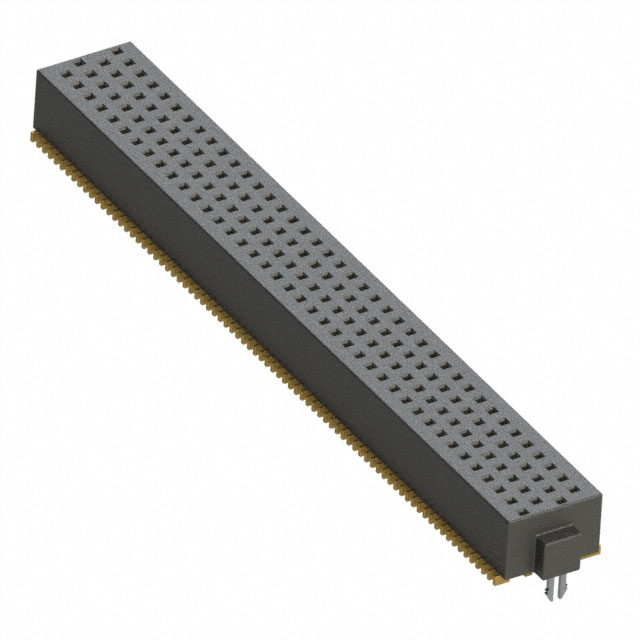

| Part Number | SOLC-140-02-L-Q-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | QUAD ROW SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6263 pcs | Data sheet | 1.SOLC-140-02-L-Q-LC.pdf2.SOLC-140-02-L-Q-LC.pdf3.SOLC-140-02-L-Q-LC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | FOURRAY™ SOLC |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | SAM11850 SOLC-140-02-L-Q-LC-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 160 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.160" (4.06mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | 160 Position Receptacle Connector Surface Mount |
| Current Rating | 2.4A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
