Part Number | TFM-107-01-L-D-RE2-WT | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | .050 X .050 MICRO STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 27448 pcs | Data sheet | 1.TFM-107-01-L-D-RE2-WT.pdf2.TFM-107-01-L-D-RE2-WT.pdf |
Voltage Rating | 275VAC | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Tiger Eye™ TFM | Row Spacing - Mating | 0.050" (1.27mm) |
Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
Overall Contact Length | - | Other Names | SAM10104 |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 14 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.256" (6.50mm) | Insulation Color | Black |
Ingress Protection | - | Features | Solder Retention |

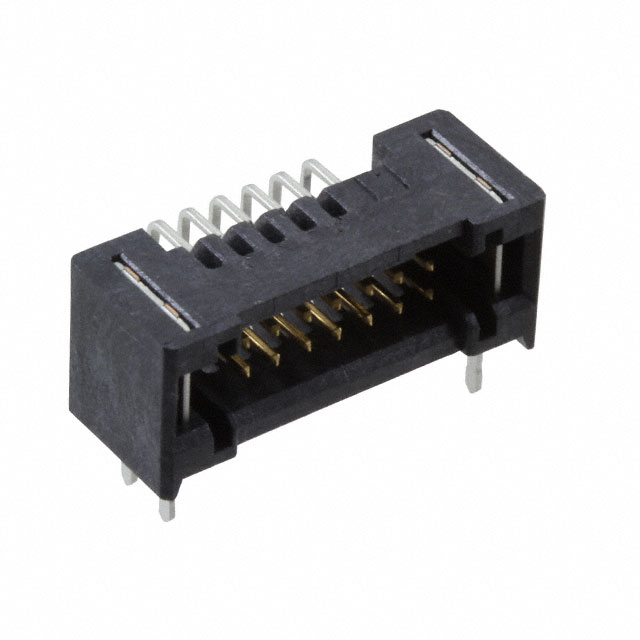

Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.050" (1.27mm) |
Current Rating | 2.9A per Contact | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.139" (3.53mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header, Elevated | Applications | - |
