Samtec, Inc.

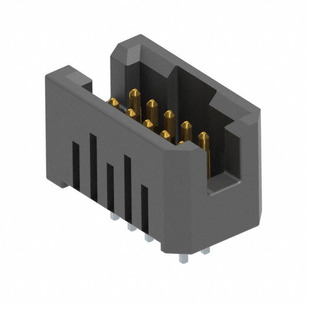

| Part Number | TFML-105-02-L-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 SHROUDED TERMINAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37889 pcs | Data sheet | 1.TFML-105-02-L-D.pdf2.TFML-105-02-L-D.pdf3.TFML-105-02-L-D.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Tiger Eye™ TFML | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | SAM12118 TFML-105-02-L-D-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Surface Mount 10 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.134" (3.39mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
