109L1424H101

Sanyo DenkiSanyo Denki

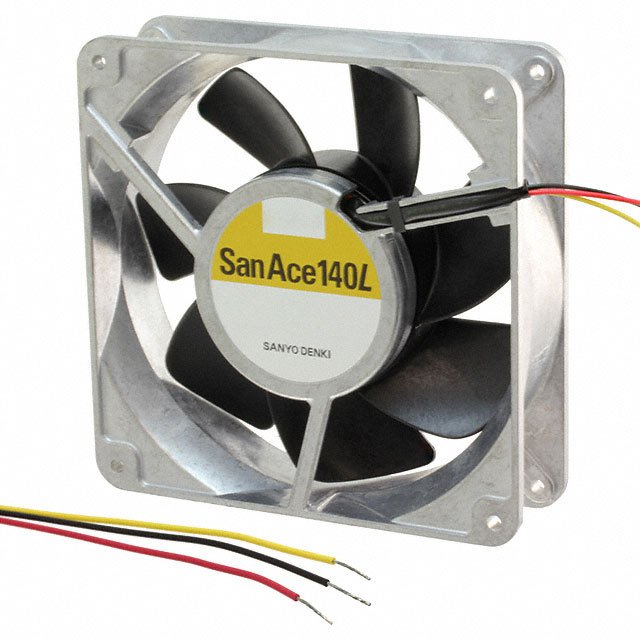

109L1424H101 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 109L1424H101
Manufacturer/Brand: Sanyo Denki
Product description FAN 140X38MM 24VDC RBLS TACH
Datasheets: 1.109L1424H101.pdf2.109L1424H101.pdf3.109L1424H101.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1386 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1386 pcs
Reference Price (In US Dollars)
1 pcs
$23.556
10 pcs
$21.346
25 pcs
$19.874
50 pcs
$19.58
100 pcs
$18.648
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$23.556

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 109L1424H101

Part Number 109L1424H101 Manufacturer Sanyo Denki
Description FAN 140X38MM 24VDC RBLS TACH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1386 pcs Data sheet 1.109L1424H101.pdf2.109L1424H101.pdf3.109L1424H101.pdf
Width 38.00mm Weight 1.3 lbs (589.7g)
Voltage Range 20.4 ~ 27.6VDC Voltage - Rated 24VDC
Termination 3 Wire Leads Static Pressure 0.394 in H2O (98.1 Pa)
Size / Dimension Square - 140mm L x 140mm H Series San Ace 140L
RPM 2600 RPM Power (Watts) 8.88W
Other Names 1688-1066 Operating Temperature -4 ~ 158°F (-20 ~ 70°C)
Noise 46.0 dB(A) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Frame Aluminum Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 60°C Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection - Features Speed Sensor (Tach)
Fan Type Tubeaxial Current Rating 0.370A
Bearing Type Ball Approvals CSA, TUV, UL
Air Flow 158.9 CFM (4.45m³/min)
