EH24-1.0-02-10M

Schaffner EMC, Inc.

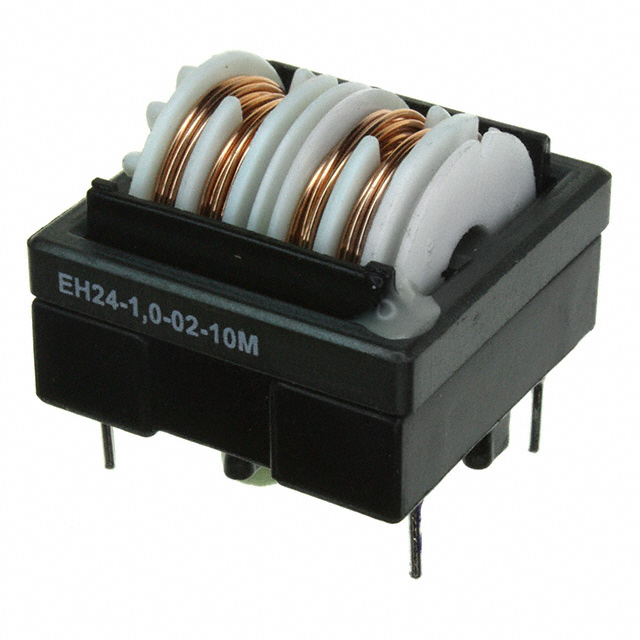

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EH24-1.0-02-10M
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 10MH 1A 2LN TH
Datasheets:	EH24-1.0-02-10M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41295 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41295 pcs

Reference Price (In US Dollars)

1 pcs: $0.832

10 pcs: $0.768

100 pcs: $0.538

500 pcs: $0.435

1000 pcs: $0.397

2500 pcs: $0.384

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.832

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EH24-1.0-02-10M

Part Number	EH24-1.0-02-10M	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 10MH 1A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41295 pcs	Data sheet	EH24-1.0-02-10M.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	0.945" L x 0.945" W (24.00mm x 24.00mm)	Series	EH
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pin	Other Names	295-528 801081 817-1009 EH24-1,0-02-10M EH24100210M
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	10mH @ 10kHz	Height (Max)	0.827" (21.00mm)
Filter Type	Power Line	Features	-
Detailed Description	10mH @ 10kHz 2 Line Common Mode Choke Through Hole 1A DCR 244 mOhm (Typ)	DC Resistance (DCR) (Max)	244 mOhm (Typ)
Current Rating (Max)	1A	Approvals	-
