EH24-3.0-02-1M2

Schaffner EMC, Inc.

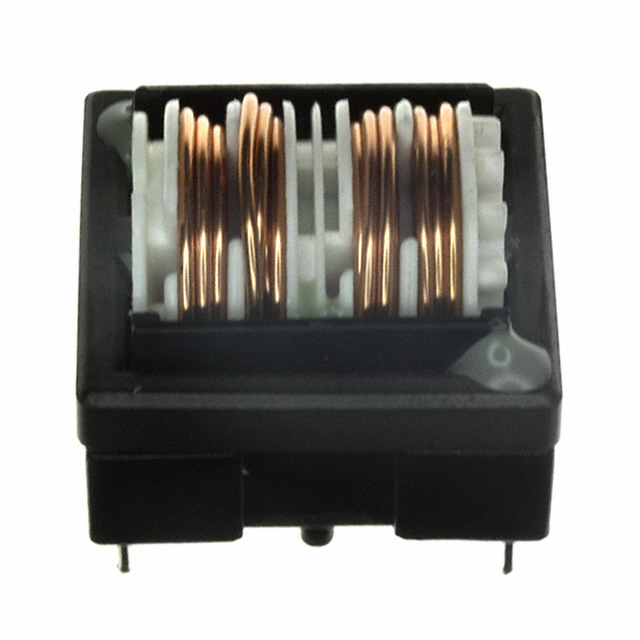

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EH24-3.0-02-1M2
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 1.2MH 3A 2LN TH
Datasheets:	EH24-3.0-02-1M2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35851 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35851 pcs

Reference Price (In US Dollars)

1 pcs: $0.832

10 pcs: $0.768

100 pcs: $0.538

500 pcs: $0.435

1000 pcs: $0.397

2500 pcs: $0.384

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.832

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EH24-3.0-02-1M2

Part Number	EH24-3.0-02-1M2	Manufacturer	Schaffner EMC, Inc.
Description	CMC 1.2MH 3A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35851 pcs	Data sheet	EH24-3.0-02-1M2.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	0.945" L x 0.945" W (24.00mm x 24.00mm)	Series	EH
Ratings	-	Packaging	Tray
Package / Case	Horizontal, 4 PC Pin	Other Names	295-531 801084 817-1012 EH24-3,0-02-1M2 EH2430021M2
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	1.2mH @ 400Hz	Height (Max)	0.827" (21.00mm)
Filter Type	Power Line	Features	-
Detailed Description	1.2mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 29 mOhm (Typ)	DC Resistance (DCR) (Max)	29 mOhm (Typ)
Current Rating (Max)	3A	Approvals	-
