EV35-3.0-02-10M

Schaffner EMC, Inc.

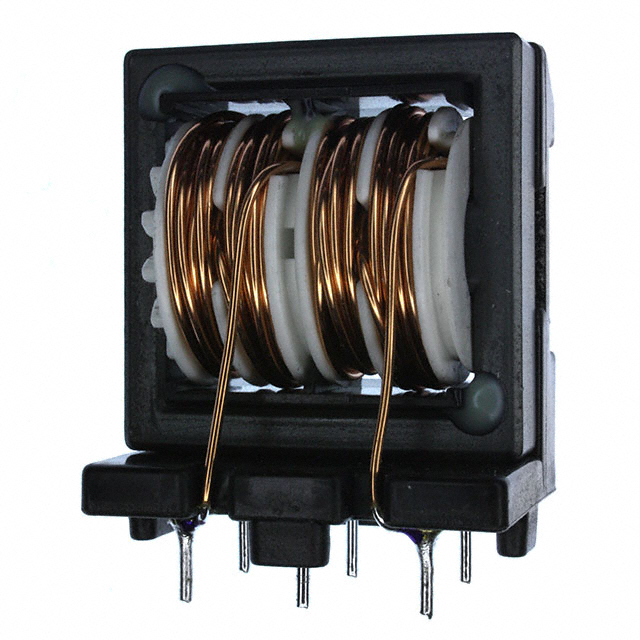

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EV35-3.0-02-10M
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 10MH 3A 2LN TH
Datasheets:	EV35-3.0-02-10M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16052 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16052 pcs

Reference Price (In US Dollars)

1 pcs: $1.774

10 pcs: $1.625

250 pcs: $1.005

500 pcs: $0.946

1000 pcs: $0.887

2500 pcs: $0.874

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.774

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EV35-3.0-02-10M

Part Number	EV35-3.0-02-10M	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 10MH 3A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16052 pcs	Data sheet	EV35-3.0-02-10M.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.417" L x 0.965" W (36.00mm x 24.50mm)	Series	EV
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	295-516 817-1055 EV35-3,0-02-10M EV35300210M
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	10mH @ 400Hz	Height (Max)	1.681" (42.70mm)
Filter Type	Power Line	Features	-
Detailed Description	10mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 72 mOhm (Typ)	DC Resistance (DCR) (Max)	72 mOhm (Typ)
Current Rating (Max)	3A	Approvals	-
