FN7563-63-M6

Schaffner EMC, Inc.Schaffner EMC, Inc.

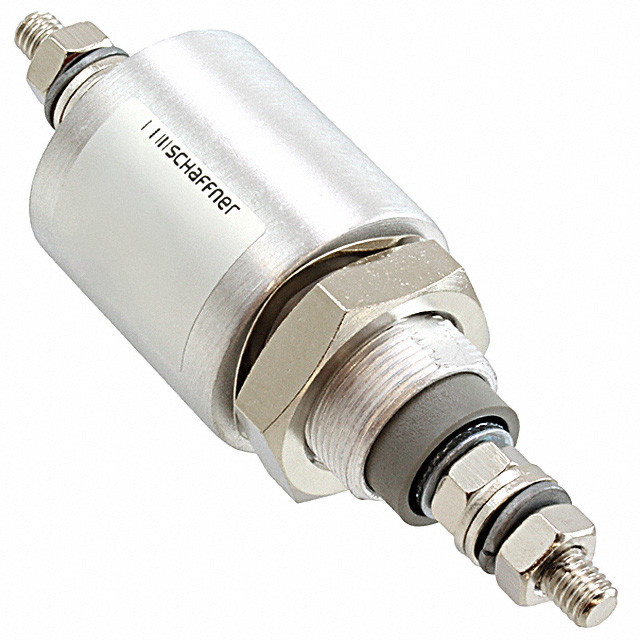

FN7563-63-M6 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FN7563-63-M6
Manufacturer/Brand: Schaffner EMC, Inc.
Product description CAP FEEDTHRU 0.47UF 650V AXIAL
Datasheets: FN7563-63-M6.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1133 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1133 pcs
Reference Price (In US Dollars)
1 pcs
$29.453
10 pcs
$27.611
100 pcs
$23.93
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$29.453

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FN7563-63-M6

Part Number FN7563-63-M6 Manufacturer Schaffner EMC, Inc.
Description CAP FEEDTHRU 0.47UF 650V AXIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1133 pcs Data sheet FN7563-63-M6.pdf
Voltage - Rated 650V Tolerance ±20%
Thread Size M20x1 Temperature Coefficient -
Size / Dimension 1.260" Dia x 3.898" L (32.00mm x 99.00mm) Series FN 756X
Ratings Y4 Packaging Tray
Package / Case Axial - Threaded Terminals Other Names 297-556
801416
817-1745
FN7563-63-M6-ND
FN756363M6
Operating Temperature -40°C ~ 100°C Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insertion Loss -
Height (Max) - Detailed Description 0.47µF Feed Through Capacitor 650V 63A 0.43 mOhm (Typ) Axial - Threaded Terminals
DC Resistance (DCR) (Max) 0.43 mOhm (Typ) Current 63A
Capacitance 0.47µF
