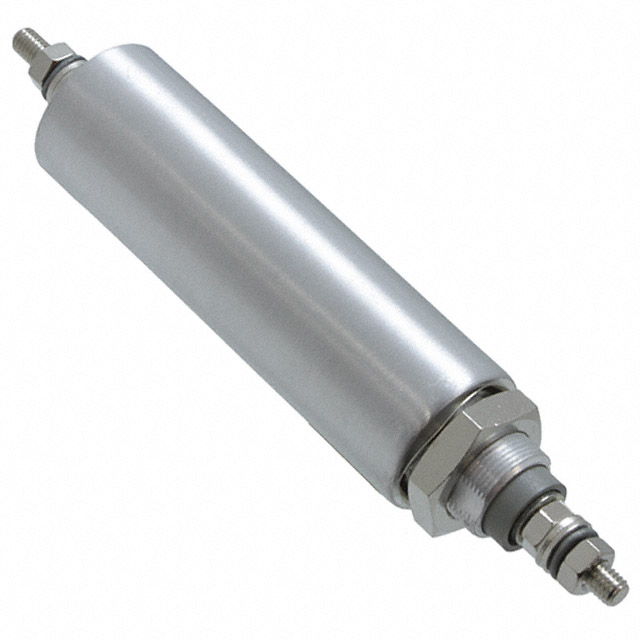

Part Number | FN7611-63-M6 | Manufacturer | Schaffner EMC, Inc. |
---|---|---|---|
Description | FILTER LC(PI) 186NH/0.015UH BOLT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 558 pcs | Data sheet | FN7611-63-M6.pdf |
Voltage - Rated | 1000V (1kV) | Values | L = 186nH, C = 0.015µF |
Type | Low Pass | Technology | LC (Pi) |
Size / Dimension | 1.260" Dia x 4.764" L (32.00mm x 121.00mm) | Series | FN 761X |
Resistance - Channel (Ohms) | 0.00047 | Packaging | Tray |
Package / Case | Axial - Threaded Terminals | Other Names | 297-850 801792 817-1750 FN7611-63-M6-ND FN761163M6 |
Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
Mounting Type | Bolt Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | - |
Filter Order | 3rd | ESD Protection | No |
Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 186nH, C = 0.015µF 63A Axial - Threaded Terminals | Current | 63A |
Center / Cutoff Frequency | - | Attenuation Value | - |
Applications | Data Lines for Mobile Devices |
