FN7612-10-M3

Schaffner EMC, Inc.

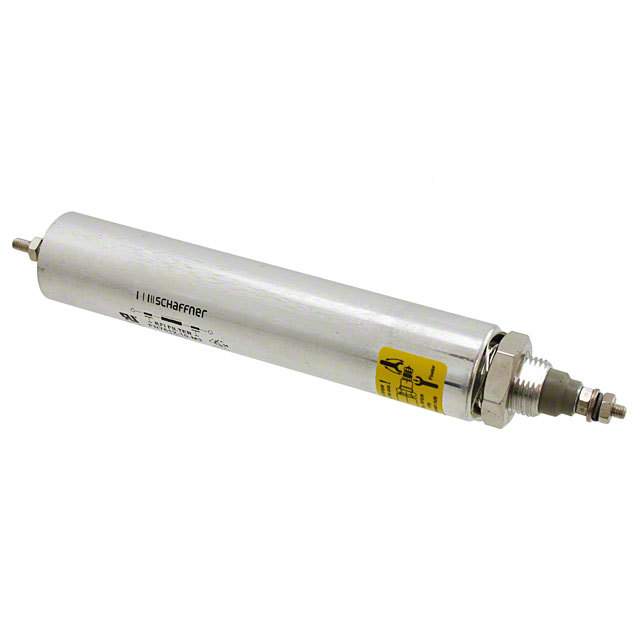

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FN7612-10-M3
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	FILTER LC(PI) 70NH/0.047UH
Datasheets:	FN7612-10-M3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1056 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1056 pcs

Reference Price (In US Dollars)

1 pcs: $30.932

10 pcs: $29.333

100 pcs: $27.20

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$30.932

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FN7612-10-M3

Part Number	FN7612-10-M3	Manufacturer	Schaffner EMC, Inc.
Description	FILTER LC(PI) 70NH/0.047UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1056 pcs	Data sheet	FN7612-10-M3.pdf
Voltage - Rated	1000V (1kV)	Values	L = 70nH, C = 0.047µF
Type	Low Pass	Technology	LC (Pi)
Size / Dimension	0.787" Dia x 4.370" L (20.00mm x 111.00mm)	Series	FN 761X
Resistance - Channel (Ohms)	0.00152	Packaging	Tray
Package / Case	Axial - Threaded Terminals	Other Names	297-919 801808 817-1752 FN7612-10-M3-ND FN761210M3
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height	-
Filter Order	3rd	ESD Protection	No
Detailed Description	LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 0.047µF 10A Axial - Threaded Terminals	Current	10A
Center / Cutoff Frequency	-	Attenuation Value	-
Applications	Data Lines for Mobile Devices
