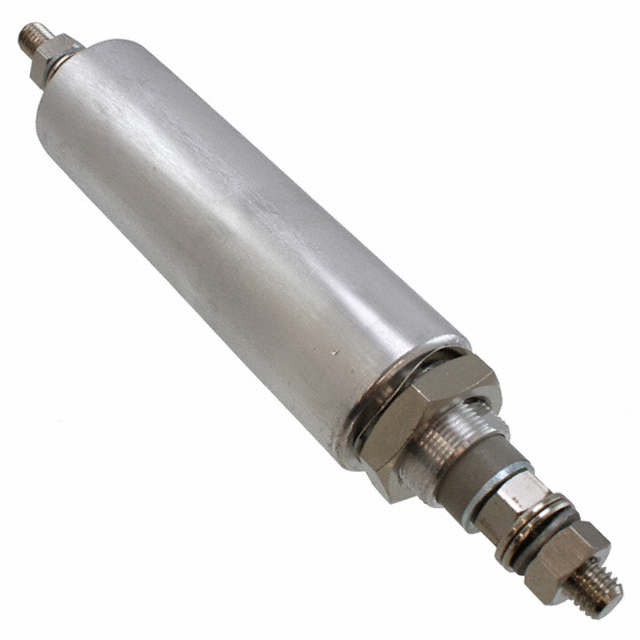

Part Number | FN7660-100-M8 | Manufacturer | Schaffner EMC, Inc. |
---|---|---|---|
Description | FILTER LC(PI) 124NH/0.47UF BOLT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 621 pcs | Data sheet | FN7660-100-M8.pdf |
Voltage - Rated | 130V | Values | L = 124nH, C = 0.47µF |
Type | Low Pass | Technology | LC (Pi) |
Size / Dimension | 1.260" Dia x 4.724" L (32.00mm x 120.00mm) | Series | FN 766X |
Resistance - Channel (Ohms) | 0.00025 | Packaging | Tray |
Package / Case | Axial - Threaded Terminals | Other Names | 297-947 801813 817-1756 FN7660-100-M8-ND FN7660100M8 |
Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
Mounting Type | Bolt Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | - |
Filter Order | 3rd | ESD Protection | No |
Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 124nH, C = 0.47µF 100A Axial - Threaded Terminals | Current | 100A |
Center / Cutoff Frequency | - | Attenuation Value | - |
Applications | Data Lines for Mobile Devices |
