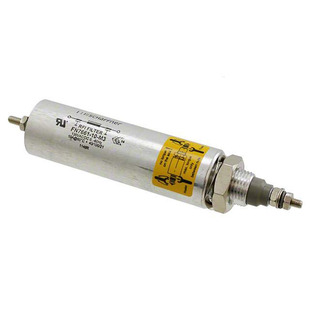

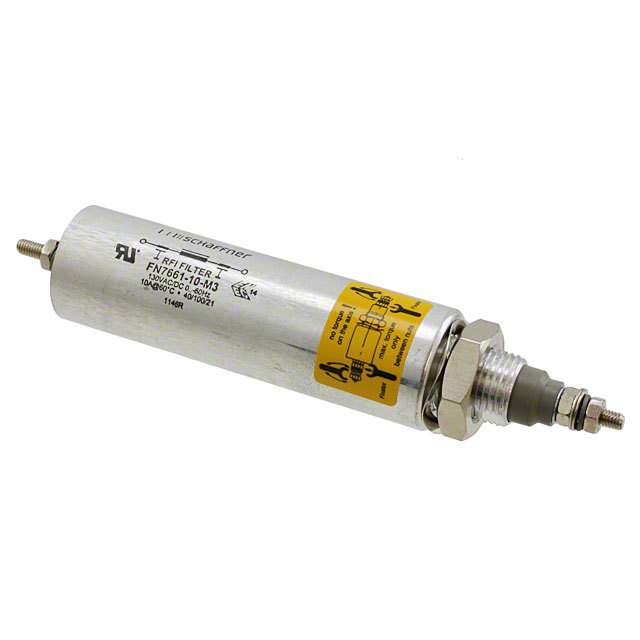

Part Number | FN7661-10-M3 | Manufacturer | Schaffner EMC, Inc. |
---|---|---|---|
Description | FILTER LC(PI) 70NH/0.1UF BOLT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 900 pcs | Data sheet | FN7661-10-M3.pdf |
Voltage - Rated | 130V | Values | L = 70nH, C = 0.1µF |
Type | Low Pass | Technology | LC (Pi) |
Size / Dimension | 0.787" Dia x 3.071" L (20.00mm x 78.00mm) | Series | FN 766X |
Resistance - Channel (Ohms) | 0.0012 | Packaging | Tray |
Package / Case | Axial - Threaded Terminals | Other Names | 297-921 801809 817-1761 FN7661-10-M3-ND FN766110M3 |
Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
Mounting Type | Bolt Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | - |
Filter Order | 3rd | ESD Protection | No |
Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 0.1µF 10A Axial - Threaded Terminals | Current | 10A |
Center / Cutoff Frequency | - | Attenuation Value | - |
Applications | Data Lines for Mobile Devices |
