RB8522-16-3M0

Schaffner EMC, Inc.

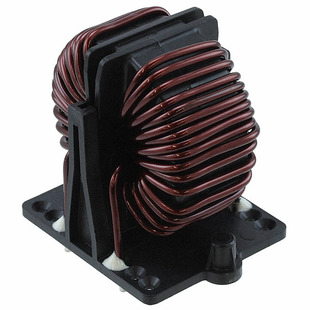

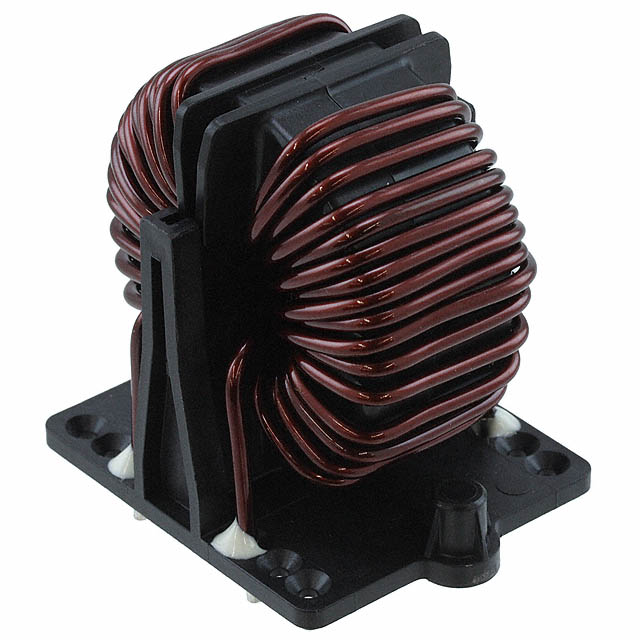

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RB8522-16-3M0
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 3MH 16A 2LN TH
Datasheets:	RB8522-16-3M0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8527 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8527 pcs

Reference Price (In US Dollars)

1 pcs: $3.993

10 pcs: $3.778

100 pcs: $3.19

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.993

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RB8522-16-3M0

Part Number	RB8522-16-3M0	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 3MH 16A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8527 pcs	Data sheet	RB8522-16-3M0.pdf
Voltage Rating - DC	1000V (1kV)	Voltage Rating - AC	600V
Size / Dimension	1.969" L x 1.709" W (50.00mm x 43.40mm)	Series	RB
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 8 PC Pin	Other Names	811860 817-1677 RB8522163M0
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	3mH @ 400Hz
Height (Max)	2.283" (58.00mm)	Filter Type	Power Line
Features	-	Detailed Description	3mH @ 400Hz 2 Line Common Mode Choke Through Hole 16A DCR 8.4 mOhm (Typ)
DC Resistance (DCR) (Max)	8.4 mOhm (Typ)	Current Rating (Max)	16A
Approvals	-
